Overview

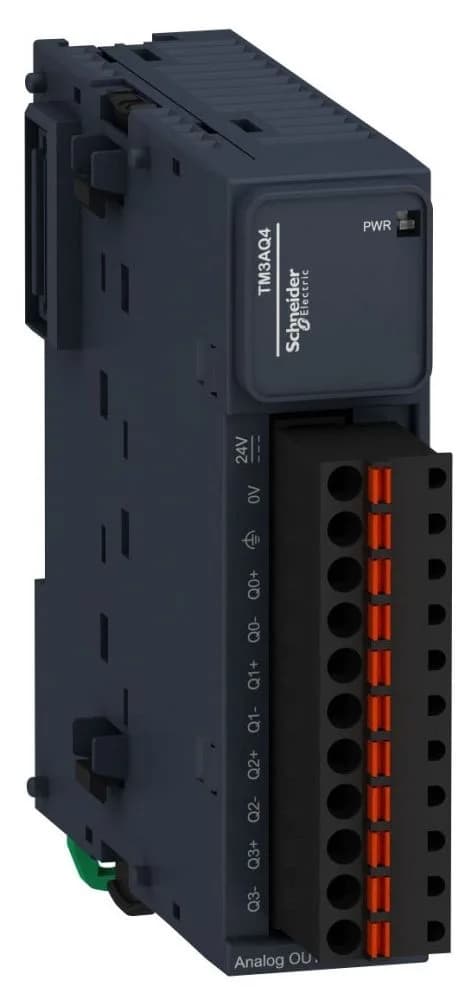

The TM3AQ4G is a 4-channel analogue output module in the Schneider Modicon TM3 family, configurable for 0-10 V, -10-10 V, 0-20 mA, or 4-20 mA outputs on each channel. It runs on a 24 VDC supply, is rated IP20, and carries CE marking per IEC 61131-2.
Precision and isolation
Non-linearity is ±0.02 %FS with a temperature drift of ±0.01 %FS/°C, and LSB values are 2.44 mV on the 0-10 V range and 3.91 µA on the 4-20 mA range. Insulation between output and supply is 1500 V AC, and between output and internal logic is 500 V AC; surge withstand is 1 kV common mode on the power supply and output.
The module mounts on a TH35-15 or TH35-7.5 DIN rail or panel with a fixing kit, and terminates via an 11-way removable spring-cage terminal block accepting 2.5 mm² wire at 5.08 mm pitch. Dimensions are 22.86 mm wide, 71.12 mm deep, and 88.9 mm high.
The module is rated IP20, pollution degree 2, and operates up to 10% humidity and 0 m altitude. It is CE marked per IEC 61131-2 and complies with California Proposition 65.
