Schneider Electric TM3TI4

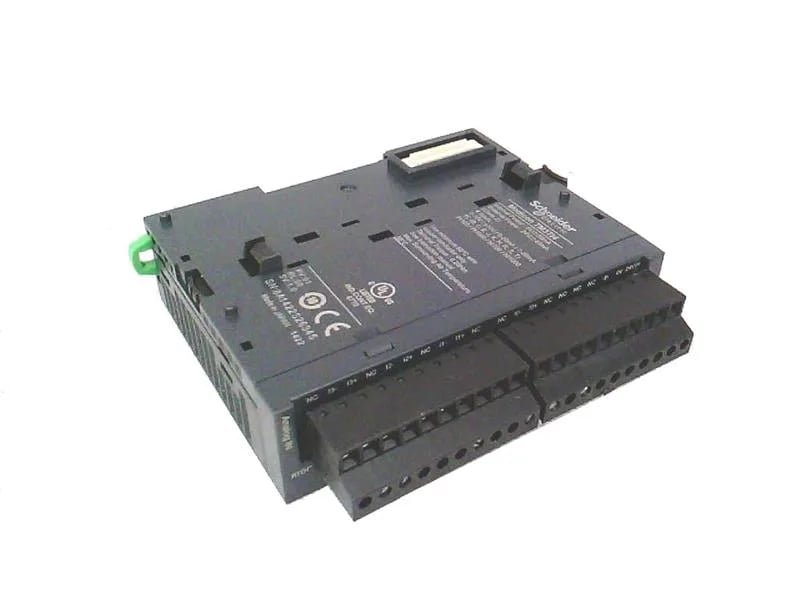

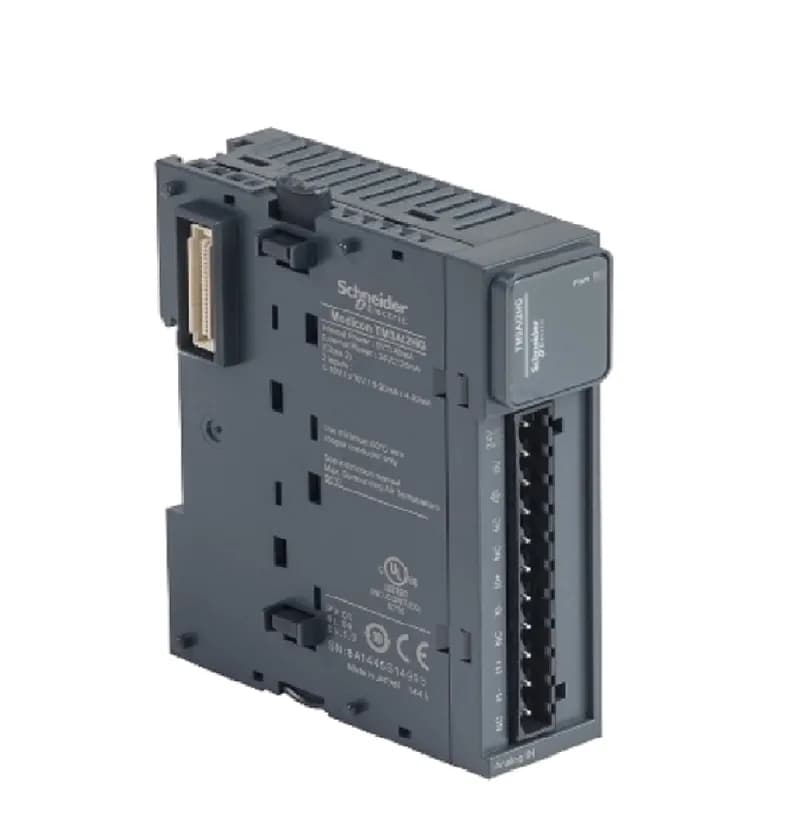

Schneider TM3TI4 Modicon TM3 analog input module, 4 inputs

MPNTM3TI4
Active

Schneider TM3TI4 Temperature & Process Controllers.

$106.08 – $252.00Ref. price · indicative, final on quote
Schneider Electric TM3TI4 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM3TI4 key specifications
ParameterValue
Type of cableTwisted shielded pairs cable <98.4 ft (30 m) input
Range of productModicon TM3
Analogue input typeCurrent 4...20 mA Current 0...20 mA Voltage 0...10 V Voltage - 10...10 V Thermocouple - 200...1000 °C thermocouple J Thermocouple - 200...1300 °C thermocouple K Thermocouple 0...1760 °C thermocouple R Thermocouple 0...1760 °C thermocouple S Thermocouple 0...1820 °C thermocouple B Thermocouple - 200...400 °C thermocouple T Thermocouple - 200...1300 °C thermocouple N Thermocouple - 200...800 °C thermocouple E Thermocouple 0...2315 °C thermocouple C Temperature probe - 60...180 °C Ni 100/Ni 1000 Temperature probe - 200...850 °C Pt 100 Temperature probe - 200...600 °C Pt 1000
Product or component typeAnalog input module
Typical current consumption45 mA 5 V DC 50 mA 5 V DC 35 mA 24 V DC 40 mA 24 V DC
IP degree of protectionIP20
Mounting supportTop hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit
Electrical connection10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity10...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)

All specifications

TM3TI4 additional specifications
ParameterValue
Vibration resistance3.5 mm 5...8.4 Hz) on DIN rail 3 gn 8.4...150 Hz) on DIN rail
Depth2.8 in (70 mm)
Width0.9 in (23.6 mm)
Height3.5 in (90 mm)
StandardsIEC 61131-2
MarkingCE
CategoryUS10MSX22533
LSB value2.44 mV, 0...10 V 4.88 mV, - 10...10 V 4.88 µA, 0...20 mA 3.91 µA, 4...20 mA 0.1 °C
Cross talk<= 1 LSB
InsulationBetween output and supply 1500 V AC Between output and internal logic 500 V AC
Non-linearity+/- 0.2 %FS
Conversion time100 ms + 100 ms per channel + 1 controller cycle time thermocouple
Input impedance>= 1 MOhm
Repeat accuracy+/-0.5 %FS
Local signalling1 LED green PWR
Sampling duration10 ms
Temperature drift+/- 0.01 %FS/°C
Analogue input number4
Absolute accuracy error+/- 0.2 % of full scale at 77 °F (25 °C) for analogue input voltage/current +/- 0.2 % of full scale at 77 °F (25 °C) for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple C 0...2315 °C +/- 6 °C at 77 °F (25 °C) for thermocouple R, S 0...200 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple R, S 200...1760 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple B 300...1820 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple K - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple J - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple E - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple E 0...800 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple T - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple T 0...400 °C +/- 0.4 % of full scale at 77 °F (25 °C) for thermocouple N - 200...0 °C +/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple N 0...1300 °C
Immunity to microbreaks10 ms
Electromagnetic emissionRadiated emissions 40 dBμV/m QP class A 10 m)30...230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230...1000 MHz IEC 55011
Analogue input resolution16 bits 15 bits + sign
Permissible continuous overload13 V voltage 40 mA current
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...131 °F (-10...55 °C) horizontal installation) 14...95 °F (-10...35 °C) vertical installation)

Product details

Overview

The TM3TI4 is a Modicon TM3 analog input module from Schneider, offering four universal inputs that accept thermocouple types J, K, R, S, B, T, N, E, C, RTDs (Pt100, Pt1000, Ni100, Ni1000), and voltage/current signals (0-10 V, -10 to 10 V, 0-20 mA, 4-20 mA). Resolution is 16 bits (15 bits + sign) with a conversion time of 100 ms per channel. It mounts on a standard DIN rail (TH35-15 or TH35-7.5) or panel, is rated IP20, and operates from a 24 VDC supply. The module is CE marked and complies with IEC 61131-2.

Compatibility and integration

The TM3TI4 is compatible with Modicon M221, M241, M251, and M262 controllers, making it a drop-in expansion for those platforms. It uses a screw terminal block and requires twisted shielded pair cable up to 30 m for analog inputs. Compared to the TSXSCP112 (a PCMCIA card with Uni-Telway/Modbus interface), the TM3TI4 is a DIN-rail module with no memory card slot and a lower switching current (0.045 A).

The TM3TI4 is an active catalog item in the Modicon TM3 range. No obsolescence date has been announced.
