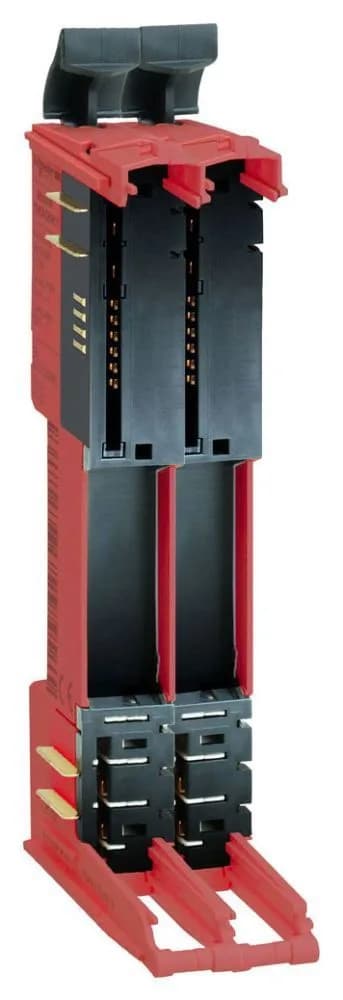

Schneider Electric TM5ACBM4FS Modicon TM5 Safety Bus Base, Red, 0.13W at 24V DC, IP20.
| Parameter | Value |
|---|---|
| Range of product | Modicon TM5 |
| Accessory (Separate part type) | Bus base |
| Supply voltage | 24 V DC |
| Power consumption in | 0.13 W |
| IP degree of protection | IP20 |
| Relative humidity | 5...95 % without condensation or dripping water |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Color | Red |
| Category | US1PC5218360 |
| Sale per indivisible quantity | 1 |
| Accessory (separate part category) | Communication accessories |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) vertical 32...140 °F (0...60 °C) horizontal |
Square D / Schneider Electric TM5ACBM4FS is a safety bus base for the Modicon TM5 distributed I/O system. It provides the backplane connection for safety I/O modules in a panel, drawing 0.13 W from the 24 V DC supply. The red housing distinguishes it as the safety variant within the TM5 range. Rated for indoor use with IP20 protection, it operates in a 0–60 °C horizontal or 0–50 °C vertical orientation, and tolerates 5–95 % non-condensing humidity.
It is red, which helps identify it as a safety bus base within the Modicon TM5 family.
