Schneider Electric TM5NEIP1

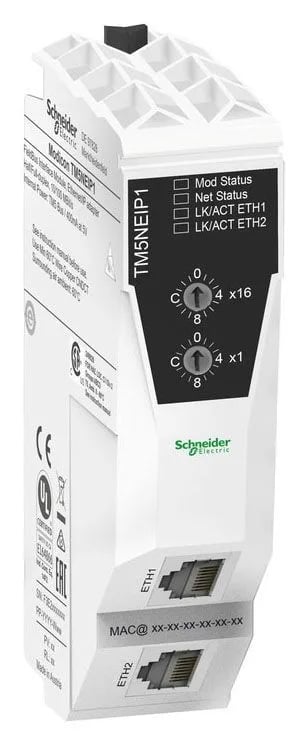

Square D TM5NEIP1 Ethernet Module, 10/100 Mb, IP20

MPNTM5NEIP1
Active

Square D TM5NEIP1 Ethernet module, Modicon TM5 system, 10/100 Mbit/s, RJ45, IP20, width 25 mm, depth 75 mm.

$135.89Ref. price · indicative, final on quote
Schneider Electric TM5NEIP1 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5NEIP1 key specifications
ParameterValue
Connector typeRJ45
Product or component typeEthernet module
IP degree of protectionIP20
Pollution degree2
Shock resistance147 m/s² 11 ms
Relative humidity5...95 % non condensing
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance3.5 mm constant amplitude 5...84 Hz) on 35 mm DIN rail 9.8 m/s² constant acceleration 8.4...150 Hz)
Depth3.0 in (75 mm)
Width1.0 in (25 mm)
Height3.9 in (99 mm)
StandardsIEC 61131-2 UL 508

All specifications

TM5NEIP1 additional specifications
ParameterValue
MarkingCE EAC UL CSA
CategoryUS1PC1222532
Web serverEmbedded
Exchange modeHalf duplex, full duplex, autonegotiation, auto MDIX
Local signalling1 LED green/red module status 1 LED green/red network 1 LED green Ethernet activity (ETH1) 1 LED green Ethernet activity (ETH2)
Transmission rate10/100 Mbit/s
Environmental characteristicNo corrosion resistance
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-4...140 °F (-20...60 °C) horizontal position) -4...122 °F (-20...50 °C) vertical position)

Product details

Integrator brief

The TM5NEIP1 is the Ethernet interface slice for a Modicon TM5 distributed I/O island. Handles 10/100 Mbit/s auto-negotiating links on two RJ45 ports — half/full duplex, auto MDIX. Embedded web server gives read-only diagnostics without a programming tool. Rated IP20, so it stays inside the cabinet.

Mechanical fit

Width 25 mm, depth 75 mm. Pollution degree 2 environment only.

Environmental tolerance

Qualified for 147 m/s² shock, 11 ms half-sine. Vibration tested at 3.5 mm displacement (5–84 Hz) and 9.8 m/s² acceleration to 150 Hz on a 35 mm rail. Operates from -20 to 60 °C horizontal, -20 to 50 °C vertical. Non-condensing humidity 5–95 %. Stored from -40 to 85 °C.

Frequently asked questions

What is TM5NEIP1's listed depth?

Depth is 3.0 in (75 mm).

What is TM5NEIP1's listed width?

Width is 1.0 in (25 mm).

What compliance documentation does this brand provide for TM5NEIP1?

The module carries CE, EAC, UL, and CSA markings and complies with IEC 61131-2 and UL 508 standards.

MPN
TM5NEIP1
