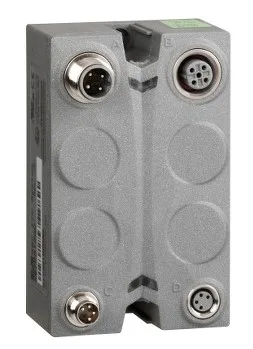

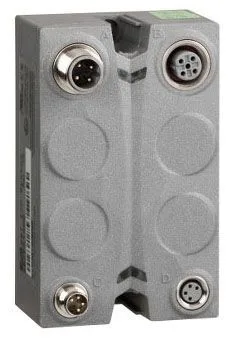

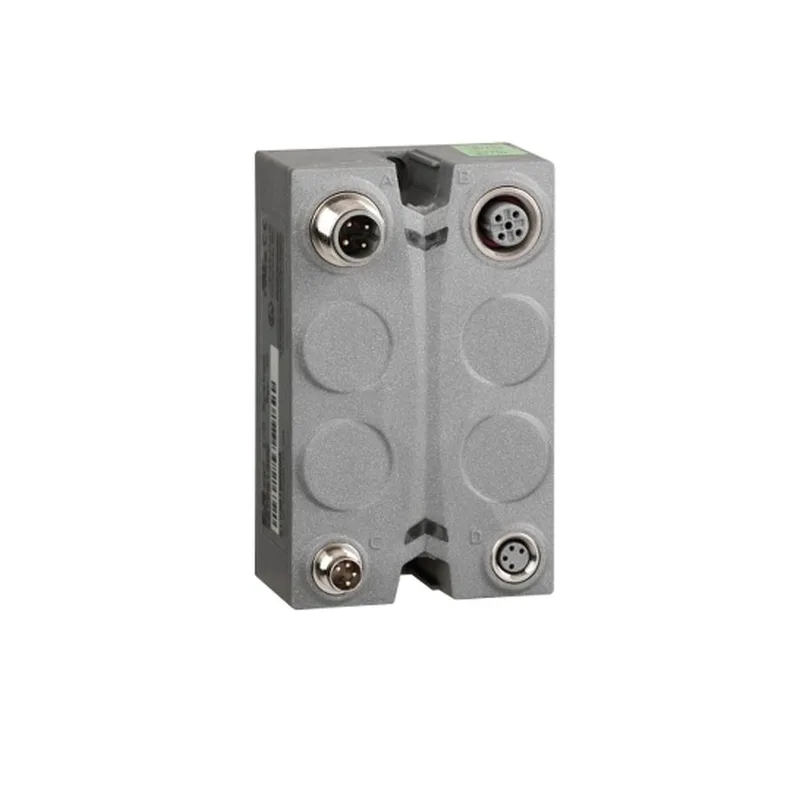

Schneider Electric TM7SPS1A
MPNTM7SPS1A
Active
SQUARE D TM7SPS1A: IP67 POWER SUPPLY MODULE 24VDC-15W
$91.44Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Internal fuse not accessible |
| Range of product | Modicon TM7 |
| Product or component type | Power distribution module |
| Supply voltage | 24 V DC |
| Input current | 750 mA |
| Nominal power | 15 W |
| Maximum power dissipation in | 3 W |
| IP degree of protection | IP20 |
| Electrical connection | 1 male + 1 female connectors M8 power supply) 1 male + 1 female connectors M12 TM7 bus) |
| Pollution degree | 2 |
| Shock resistance | 30 gn 11 msIEC 60721-3-5 Class 5M3 |
| Relative humidity | 5...95 % without condensation |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 7.5 mm constant amplitude 2...8 Hz) IEC 60721-3-5 Class 5M3 2 gn constant acceleration 8...200 Hz) IEC 60721-3-5 Class 5M3 4 gn constant acceleration 200...500 Hz) IEC 60721-3-5 Class 5M3 |
| Depth | 3.0 in (75 mm) |
| Width | 0.5 in (12.5 mm) |
| Height | 3.9 in (99 mm) |
| Standards | IEC 61131-2 |
| Marking | CE |
| Category | US1PC1222532 |
| Fixing mode | By 2 screws |
| Local signalling | 2 LEDs sensor/actuator power supply status |
| Operating position | Any position |
| Ambient air temperature for storage | -13...185 °F (-25...85 °C) |
| Ambient air temperature for operation | 14...140 °F (-10...60 °C) |
MPN
TM7SPS1A
