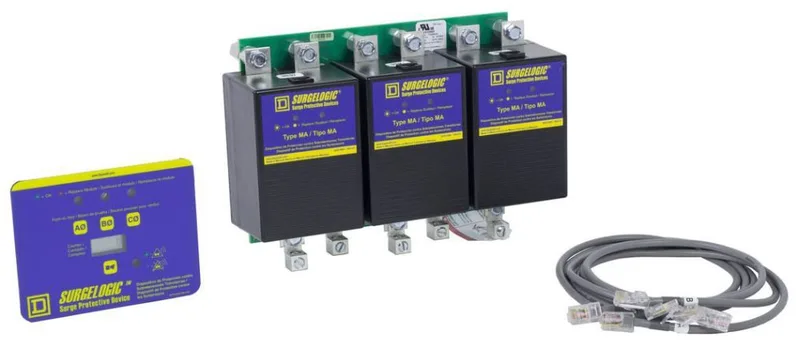

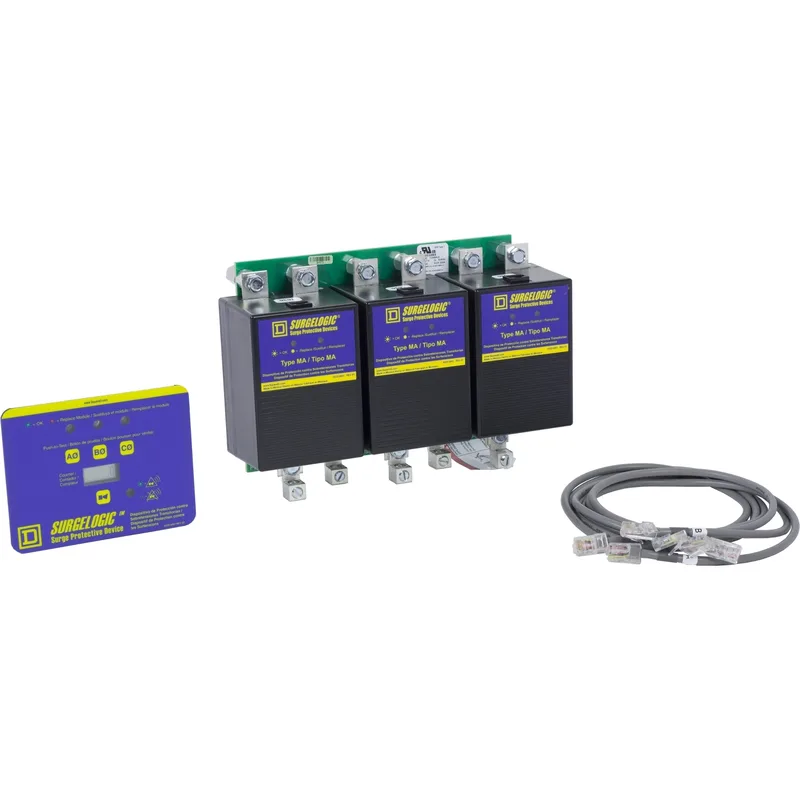

Schneider Electric TVS4IMA24O1
MPNTVS4IMA24O1
Obsolete
SPD T1 IMA-OEM BUSWAY 240KA 480Y/277V|SPD T1 IMA-OEM BUSWAY 240KA 480Y/277V
$7,030.00 – $8,150.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Voltage rating | 480Y/277 V AC |
| Surge current | 240 kA per phase |
| Nominal discharge current | 20 kA |
| Phases | 3 phase |
| IP rating | NEMA 1 |
| Device mounting | Surface |
| Connection | Lugs AWG 12...AWG 2 aluminium/copper 35.4 lbf.in (4 N.m) |
| Depth | 3.6 in (92.7 mm) |
| Width | 9.9 in (250.4 mm) |
| Height | 6.1 in (155.7 mm) |
| Standards | UL 1449:ed. 4 CSA C22.2 No 8:1986 UL 96A:ed. 12 UL 1283 IEC 61643-1 |
| MCOV | 320 V |
All specifications
| Parameter | Value |
|---|---|
| SCCR | 200 kA |
| Range | Surgelogic |
| Product | Surge protection device |
| Category | US1DE1B08468 |
| Device short name | IMA |
| Provided equipment | Alarm enable/disable switch Diagnostic display Backplane Cables |
| Wiring configuration | 4-wire |
MPN
TVS4IMA24O1
