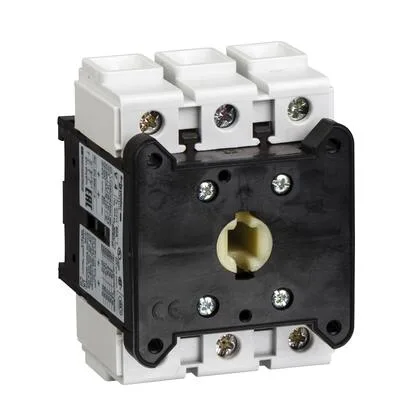

Schneider Electric V5
MPNV5
Active
TeSys VARIO - Switch body for switch-disconnector - 3 poles - 125 A|TeSys VARIO - Switch body for switch-disconnector - 3 poles - 125 A
$55.88 – $319.68Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC DC |
| Product type | Switch body |
| Contact type and composition | 3 NO |
| [Ue] IEC rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand RMS current | 1500 A 400 V 1 s |
| Breaking capacity | 1000 A 400 V AC-21A) 1000 A 400 V AC-22A) 1000 A 400 V AC-23A) |
| [Ie] rated operational current | 68.5 A AC-23 Ue: 400 V |
| Rated conditional short circuit current | 10 kA 400 V 125 A aM 10 kA 400 V 125 A gG |
| [Icm] rated short circuit making capacity | 2.8 kA 400 V at Ipeak |
| [Ith] conventional free air thermal current | 125 A |
| [Ithe] conventional enclosed thermal current | 100 A |
All specifications
| Parameter | Value |
|---|---|
| IEC rated operational power in | 22 kW 230...240 V AC-3) 30 kW 400...415 V AC-3) 30 kW 690 V AC-3) 37 kW 500 V AC-3) 37 kW 690 V AC-23A) 45 kW 500 V AC-23A) 22 kW 230...240 V AC-23A) 37 kW 400...415 V AC-23A) |
| Network frequency | 50/60 Hz |
| Poles | 3P |
| Intermittent duty class | 30 |
| IP rating | IP20 conforming to IEC 60529 |
| Mounting support | Symmetrical rail Plate |
| IEC terminal connection | Power circuit screw clamp terminals 0.1 in² (70 mm²) flexible - with cable end Power circuit screw clamp terminals 0.1 in² (95 mm²) solid |
| Depth | 3.5 in (90 mm) |
| Width | 3.5 in (90 mm) |
| Height | 4.9 in (125 mm) |
| Product weight | 2.0 lb(US) (0.9 kg) |
| Electrical durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| Mechanical durability | 30000 cycles |
| Standards | IEC 60947-3 |
| Range | TeSys |
| Category | US10CP121730 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Device short name | V |
| Safety category | High performance |
| Tightening torque | Power circuit 200.03 lbf.in (22.6 N.m) screw clamp terminals |
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Making capacity ( i rms) | 1250 A 400 V AC-21A 1250 A 400 V AC-22A 1250 A 400 V AC-23A |
| Suitability for isolation | Yes |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
V5
