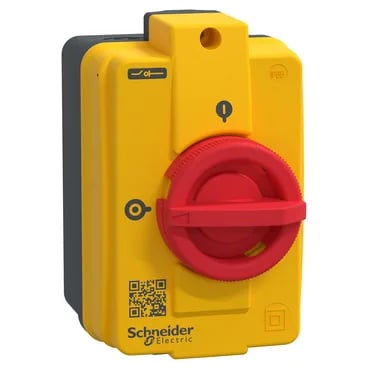

Schneider Electric VCFN32GE
MPNVCFN32GE
Active
Enclosed switch disconnector,TeSys Control,for ON/emergency stop,25A,IP65,compact size
$39.81 – $73.18Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary handle |
| Product or component type | Emergency stop switch disconnector |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand RMS current | 384 A at 400 V duration: 1 s |
| [Ie] rated operational current | 21.8 A (AC-23A) at 400 V |
| Rated conditional short-circuit current | 10 kA at 400 V |
| [Ithe] conventional enclosed thermal current | 25 A |
| Rated operational power in | 11 kW at 400 V (AC-23) 7.5 kW at 400 V (AC-3) |
| Poles description | 3P |
| Intermittent duty class | 30 |
| Depth | 106 mm |
All specifications
| Parameter | Value |
|---|---|
| Width | 82.5 mm |
| Height | 131 mm |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Handle front plate dimension | 60 x 60 mm |
| Standards | IEC 60947-4-1 |
| Range | TeSys |
| Marking | 0 - 1 |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| Device short name | VCFN |
| Safety category | Standard |
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Making capacity ( i rms) | 320 A at 400 V AC-21A |
| Rotary handle padlocking | 1 to 3 padlocks 4...8 mm |
| Suitability for isolation | Yes |
| Ambient air temperature for operation | -20...50 °C |
MPN
VCFN32GE
