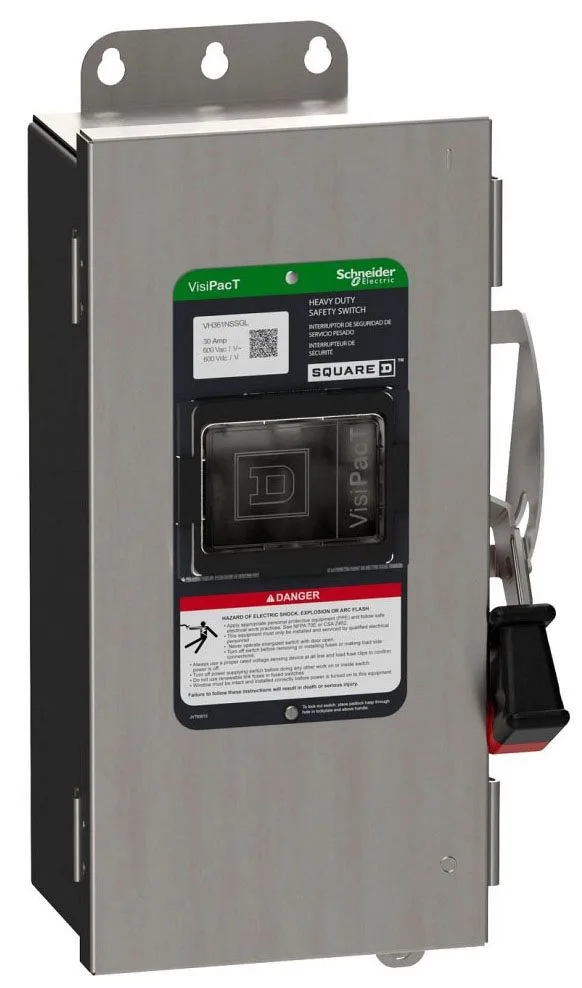

Schneider Electric VH3612AWKGL
MPNVH3612AWKGL
Active
SCHNEIDER ELECTRIC Safety Switch: Fusible, 30 A, Three Phase, 600V AC/DC, Galvanized Steel, Indoor
$965.87Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | H or K R or J |
| Mounting | Surface |
| Disconnect type | Fusible disconnect |
| Voltage rating | 600 V AC/DC |
| Current rating | 30 A |
| Short-circuit current | 10 kA for H or K 200 kA for R or J |
| Standard motor power rating | 5 hp at 480 V AC 50-60 Hz for 3 phase motors 15 hp at 480 V AC 50-60 Hz for 3 phase motors 7.5 hp at 600 V AC 50-60 Hz for 3 phase motors 20 hp at 600 V AC 50-60 Hz for 3 phase motors 15 hp at 600 V DC |
| Poles | 3 |
| Duty rating | Heavy duty |
| IP rating | NEMA 3R/12 galvannealed steel oversized 60 A |
| Wire AWG | AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper |
| Electrical connection | Lugs |
All specifications
| Parameter | Value |
|---|---|
| Depth | 7 in (177.8 mm) |
| Width | 10.5 in (266.7 mm) |
| Height | 16.5 in (419.1 mm) |
| Standards | UL98 CSA C22.2 No 4 NOM-003-SCFI-2000 |
| Certifications | UL listed file E2875 |
| Product | Single Throw Safety Switch |
| Category | US10DE100113 |
| Service entrance | Suitable service entrance for Mexico Suitable service entrance for USA |
| Tightening torque | 45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 35 lbf.in (4.0 N.m) 0.003...0.008 in² (2.06...5.261 mm²) (AWG 14...AWG 10) |
| Device application | Heavy application |
| Wiring configuration | 3-wire (3P) |
MPN
VH3612AWKGL
