Schneider Electric VH362NSSGL
MPNVH362NSSGL
Active

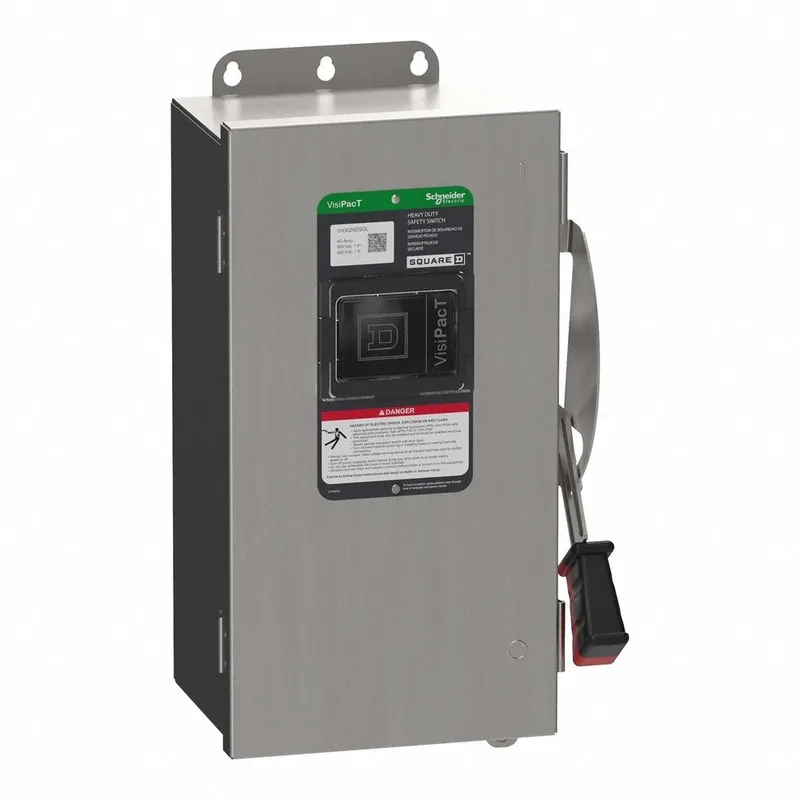

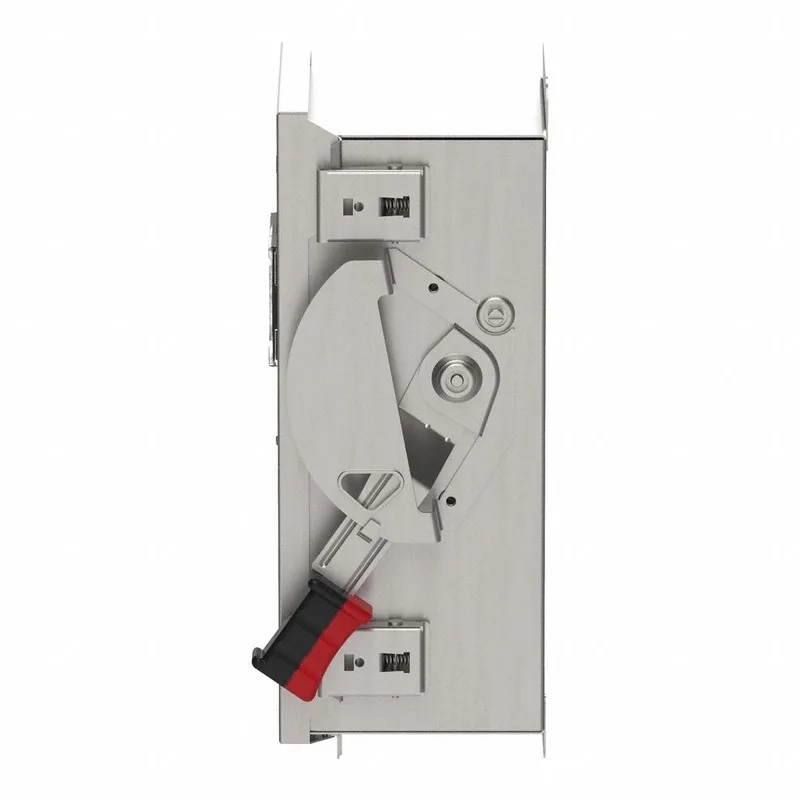

SCHNEIDER ELECTRIC Safety Switch: Fusible, 60 A, Three Phase, 600V AC/DC, 316 Stainless Steel
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Fuse type | H or K R or J |
| Mounting | Surface |
| Disconnect type | Fusible disconnect |
| Voltage rating | 600 V AC/DC |
| Current rating | 60 A |
| Short-circuit current | 10 kA for H, K, J or R without fuse rejection clips 200 kA for R with fuse rejection clips 200 kA for J |
| Standard motor power rating | 15 hp at 480 V AC 50-60 Hz for 3 phase motors 30 hp at 480 V AC 50-60 Hz for 3 phase motors 15 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 600 V AC 50-60 Hz for 3 phase motors 30 hp at 600 V DC |
| Poles | 3 |
| Duty rating | Heavy duty |
| IP rating | NEMA 4X Stainless Steel |
| Wire AWG | AWG 14...AWG 3 copper AWG 12...AWG 3 aluminium |
| Electrical connection | Lugs |
All specifications
| Parameter | Value |
|---|---|
| Depth | 7.26 in (184.40 mm) |
| Width | 8.92 in (226.57 mm) |
| Height | 16.93 in (430.02 mm) |
| Standards | UL98 CSA C22.2 No 4 NOM-003-SCFI-2000 |
| Certifications | UL listed file E2875 |
| Product | Single Throw Safety Switch |
| Category | US10DE100010 |
| Grounding kit | Factory installation |
| Service entrance | Suitable service entrance for USA Suitable service entrance for Mexico |
| Tightening torque | 50 lbf.in (5.6 N.m) (AWG 3) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8) 50 lbf.in (5.6 N.m) 0.003...0.008 in² (2.06...5.261 mm²) (AWG 14...AWG 10) |
| Device application | Heavy application |
| Wiring configuration | 4-wire (3PH + N) |
| Factory installed neutral | Neutral (factory installed) |
MPN
VH362NSSGL
