Schneider Electric VHU364NDSGL
MPNVHU364NDSGL
Active

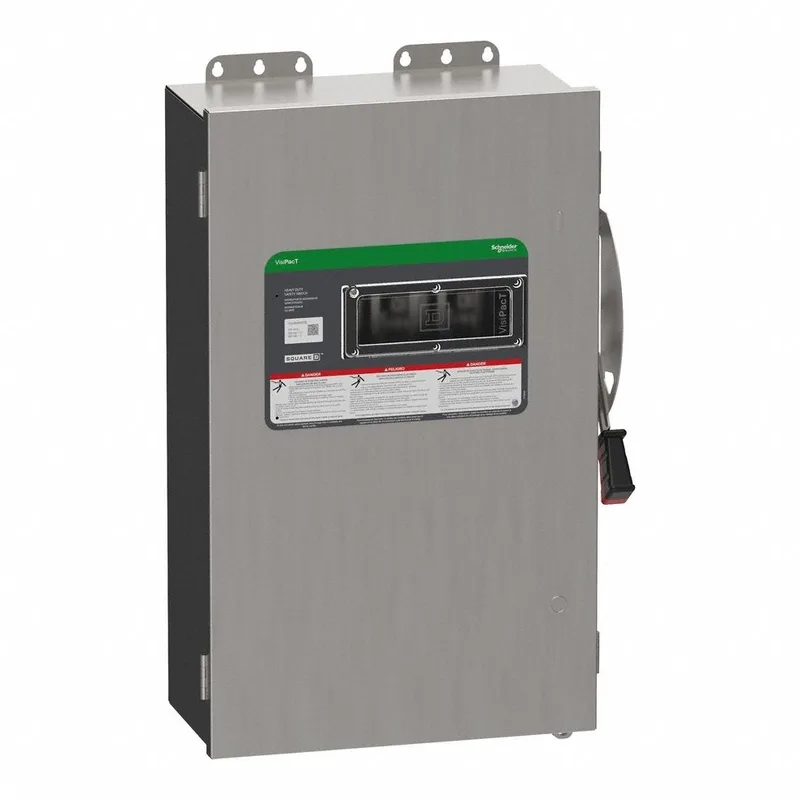

SCHNEIDER ELECTRIC Safety Switch: Non-Fusible, 200 A, Three Phase, 600V AC/DC, 304 Stainless Steel
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface |
| Disconnect type | Non-fusible disconnect |
| Voltage rating | 600 V AC/DC |
| Current rating | 200 A |
| Standard motor power rating | 15 hp at 240 V AC 50/60 Hz for 1 phase motors 60 hp at 240 V AC 50/60 Hz for 3 phase motors 50 hp at 480 V AC 50/60 Hz for 1 phase motors 125 hp at 480 V AC 50/60 Hz for 3 phase motors 50 hp at 600 V AC 50/60 Hz for 1 phase motors 150 hp at 600 V AC 50/60 Hz for 3 phase motors 40 hp at 250 V DC 50 hp at 600 V DC |
| Poles | 3 |
| Duty rating | Heavy duty |
| IP rating | NEMA 4X stainless steel 304 |
| Wire AWG | AWG 6...250 kcmil copper or aluminium |
| Electrical connection | Lugs |
| Depth | 8.937 in (227.000 mm) |
| Width | 17.474 in (443.840 mm) |
All specifications
| Parameter | Value |
|---|---|
| Height | 28.9 in (734.06 mm) |
| Standards | UL98 CSA C22.2 No 4 NOM-003-SCFI-2000 |
| Certifications | UL listed file E2875 |
| Product | Single Throw Safety Switch |
| Category | US10DE100010 |
| Grounding kit | Factory installation |
| Service entrance | Suitable service entrance for USA Suitable service entrance for Mexico |
| Tightening torque | 275 lbf.in (31.07 N.m) 0.02...0.2 in² (13.3...127 mm²) (AWG 6...250 kcmil) |
| Device application | Heavy application |
| Wiring configuration | 4-wire (3PH + N) |
| Factory installed neutral | Neutral (factory installed) |
MPN
VHU364NDSGL
