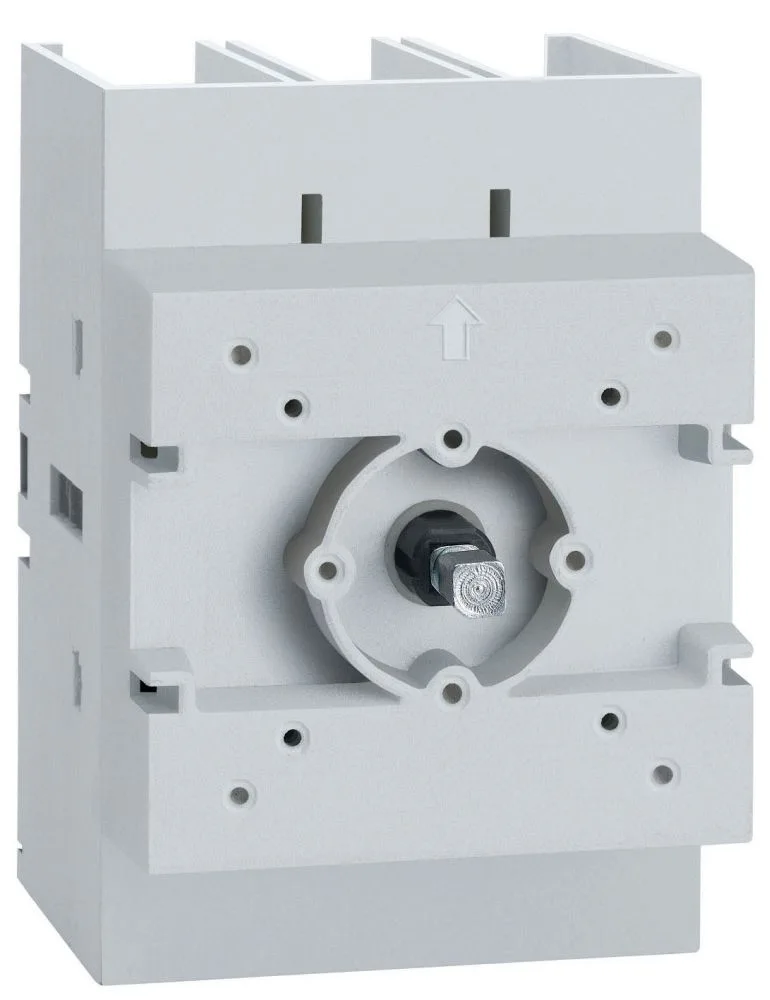

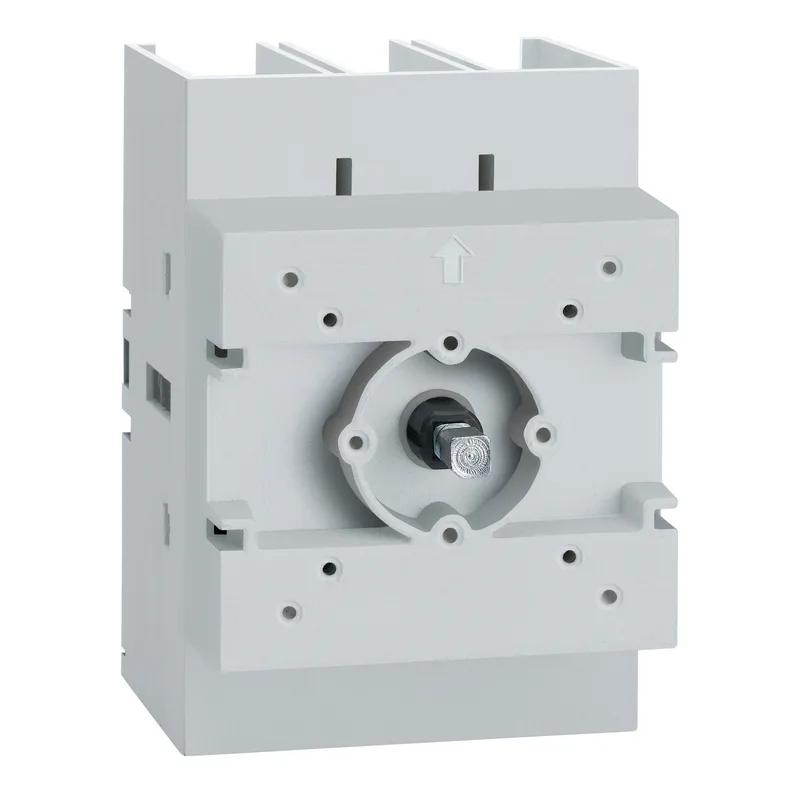

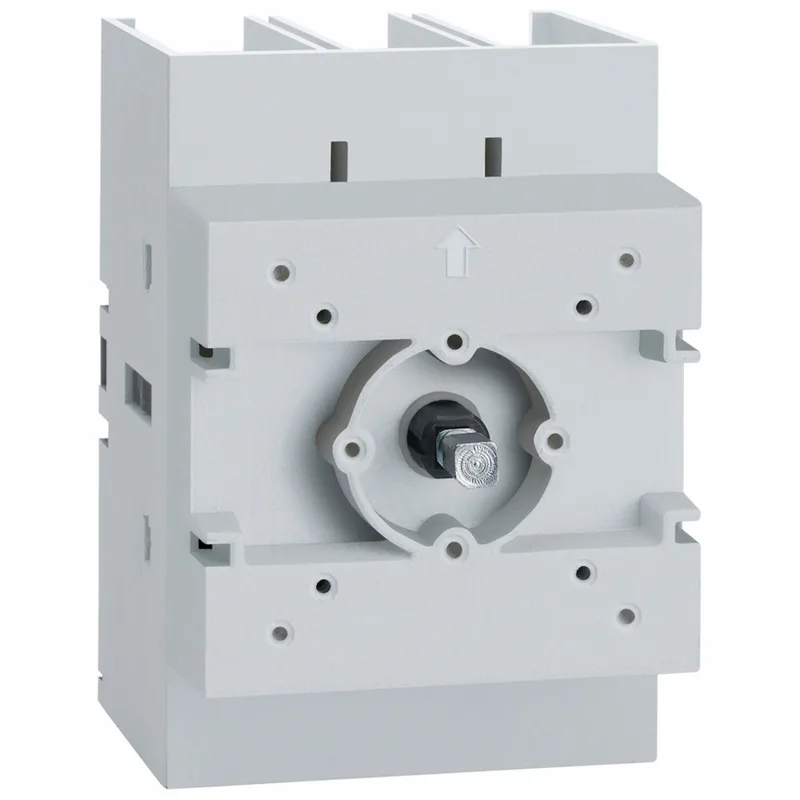

Schneider Electric VLS3P125D2
MPNVLS3P125D2
Active
SCHNEIDER Disconnect Switch: 125 A Current Rating, 480V AC
$281.57 – $330.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Product type | Switch body |
| Contact type and composition | 3 NO |
| [Ue] UL rated operational voltage | 600 V AC 50/60 Hz UL 508 |
| [Ue] IEC rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Icw] rated short-time withstand RMS current | 2500 A 690 V 1 s |
| Breaking capacity | 187.5 A 690 V AC-21A) 375 A 690 V AC-22A) 1000 A 690 V AC-23A) |
| [Ie] rated operational current | 100 A Ue: 600 V UL98 125 A AC-21A Ue: 400 V 125 A AC-21A Ue: 500 V 125 A AC-21A Ue: 690 V 125 A AC-22A Ue: 400 V 125 A AC-22A Ue: 500 V 125 A AC-22A Ue: 690 V 125 A AC-23A Ue: 400 V 100 A AC-23A Ue: 500 V 47 A AC-23A Ue: 690 V |
| Rated conditional short circuit current | 50 kA 400 V 125 A gG |
| [Icm] rated short circuit making capacity | 3550 A 690 V |
| [Ith] conventional free air thermal current | 125 A (at 131 °F (55 °C)) |
All specifications
| Parameter | Value |
|---|---|
| [Ithe] conventional enclosed thermal current | 100 A |
| UL maxium horsepower ratings | 30 hp 200/208 V AC 30 hp 240 V AC 60 hp 480 V AC 60 hp 600 V AC 7.5 hp 120 V AC 10 hp 240 V AC |
| IEC rated operational power in | 55 kW 400 V AC-23A) 45 kW 500 V AC-23A) 45 kW 690 V AC-23A) |
| Network frequency | 50/60 Hz |
| Poles | 3P |
| Intermittent duty class | Class 120 - 60 % |
| IP rating | IP20 conforming to IEC 60529 |
| Mounting support | Door |
| UL wire size | AWG 12...AWG 1 copper |
| IEC terminal connection | Power circuit screw clamp terminals 0.08 in² (50 mm²) solid Power circuit screw clamp terminals 0.1 in² (70 mm²) flexible - without cable end |
| Color | Gray |
| Depth | 3.9 in (100 mm) |
| Width | 2.8 in (70 mm) |
| Height | 2.8 in (70 mm) |
| Product weight | 0.805 lb(US) (0.365 kg) |
| Electrical durability | 30000 cycles AC-21 |
| Mechanical durability | 30000 cycles |
| Standards | UL98 CSA C22.2 No 4 IEC 60947-3 |
| SCCR | Circuit-breaker 250 A maximum: 100 kA at 480 V AC Fuse CC 200 A maximum: 100 kA at 480 V AC Fuse J 200 A maximum: 100 kA at 480 V AC Fuse T 200 A maximum: 100 kA at 480 V AC Fuse CC 100 A maximum: 50 kA at 600 V AC Fuse J 100 A maximum: 50 kA at 600 V AC Fuse T 100 A maximum: 50 kA at 600 V AC |
| Range | TeSys |
| Category | US10CP121734 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Device short name | VLS3P |
| Safety category | High performance |
| Tightening torque | Power circuit 44.3...53.1 lbf.in (5...6 N.m) screw clamp terminals |
| Mechanical robustness | Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Making capacity ( i rms) | 1250 A 690 V AC-23A 187.5 A 690 V AC-21A 375 A 690 V AC-22A |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
VLS3P125D2
