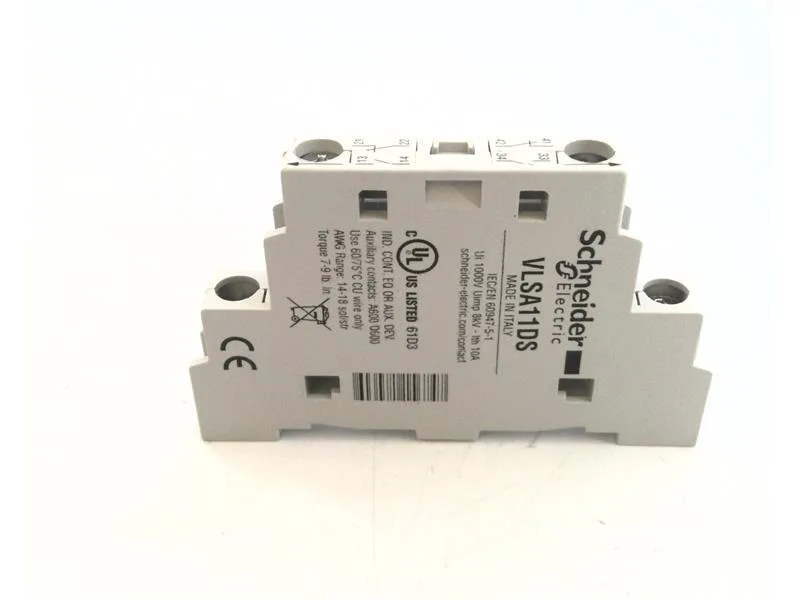

Schneider Electric VLSA11DS
MPNVLSA11DS
Active
AUX CONTACT 1NO 1NC FOR DOOR MOUNT|AUX CONTACT 1NO 1NC FOR DOOR MOUNT
$24.13 – $37.69Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | DC AC |
| Product or component type | Auxiliary contact block |
| Contacts type and composition | 1 NC + 1 NO |
| Minimum output voltage | 5 V |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Minimum output current | 10 mA |
| [Ie] rated operational current | 6 A AC-15)24 V AC 6 A AC-15)48 V AC 6 A AC-15)127 V AC 3 A AC-15)240 V AC 3 A DC-13)24 V DC 1.5 A DC-13)48 V DC 0.55 A DC-13)127 V DC 0.27 A DC-13)240 V DC |
| [Ith] conventional free air thermal current | 10 A (at 131 °F (55 °C)) |
| [Ithe] conventional enclosed thermal current | 10 A |
| Network frequency | 50/60 Hz |
| IP degree of protection | IP20 conforming to IEC 60529 |
All specifications
| Parameter | Value |
|---|---|
| Mounting location | Right Left |
| Main device mounting support | Door |
| Connections - terminals | Control circuit screw clamp terminals 0.004 in² (2.5 mm²) flexible - without cable end |
| Color | Gray |
| Depth | 1.8 in (46.2 mm) |
| Width | 0.3 in (8.5 mm) |
| Height | 2.9 in (72.6 mm) |
| Standards | UL 508 CSA C22.2 No 14 IEC 60947-3 IEC 60947-5 |
| Range | TeSys |
| Category | US10CP121734 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-11 |
| Contact operation | Simultaneous 1 NC Simultaneous 1 NO |
| Device short name | VLSA |
| Safety category | High performance |
| Tightening torque | Control circuit 7.08...8.9 lbf.in (0.8...1 N.m) screw clamp terminals |
| Mechanical robustness | Vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 Shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
VLSA11DS
