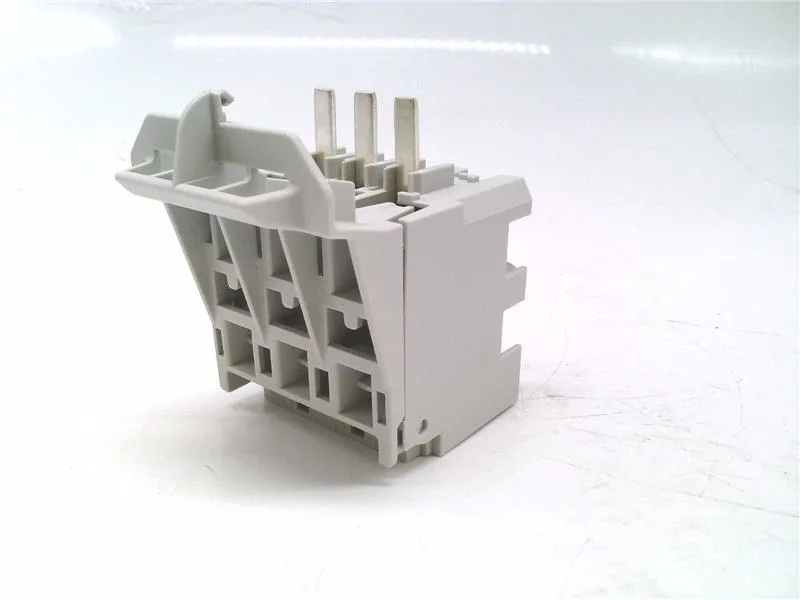

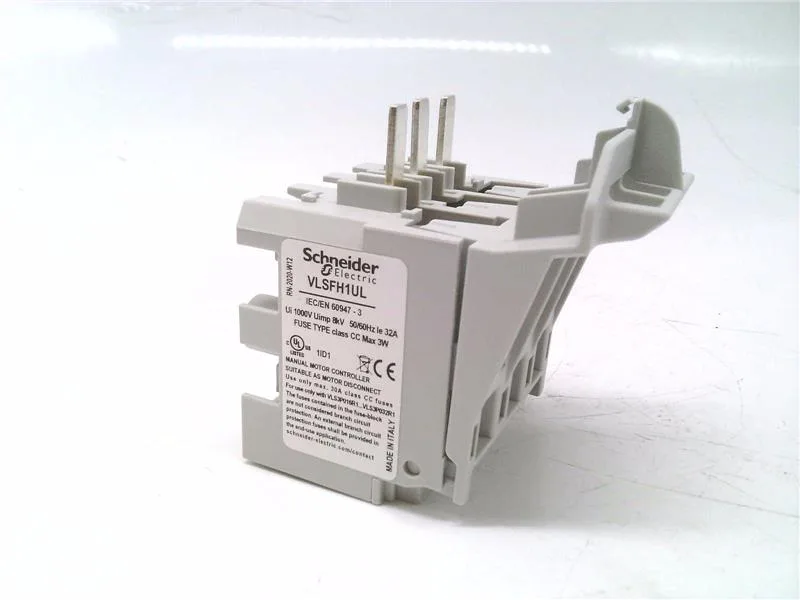

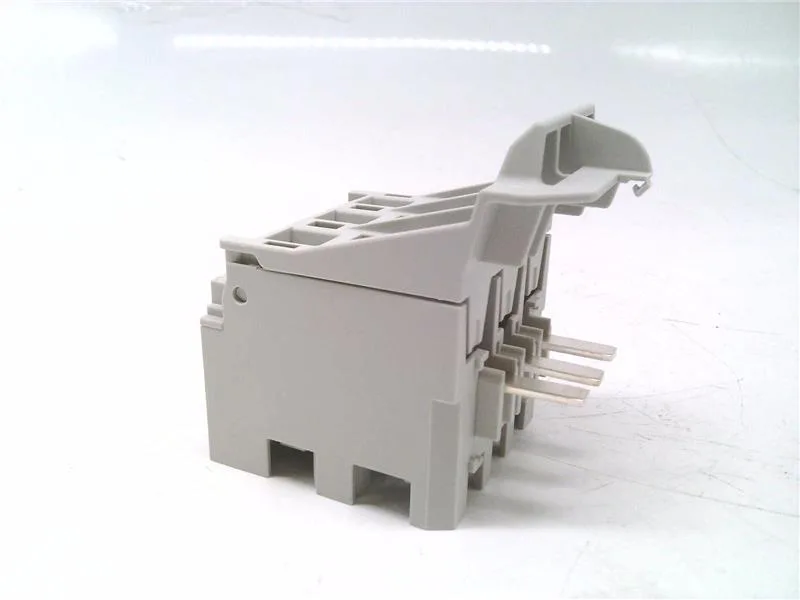

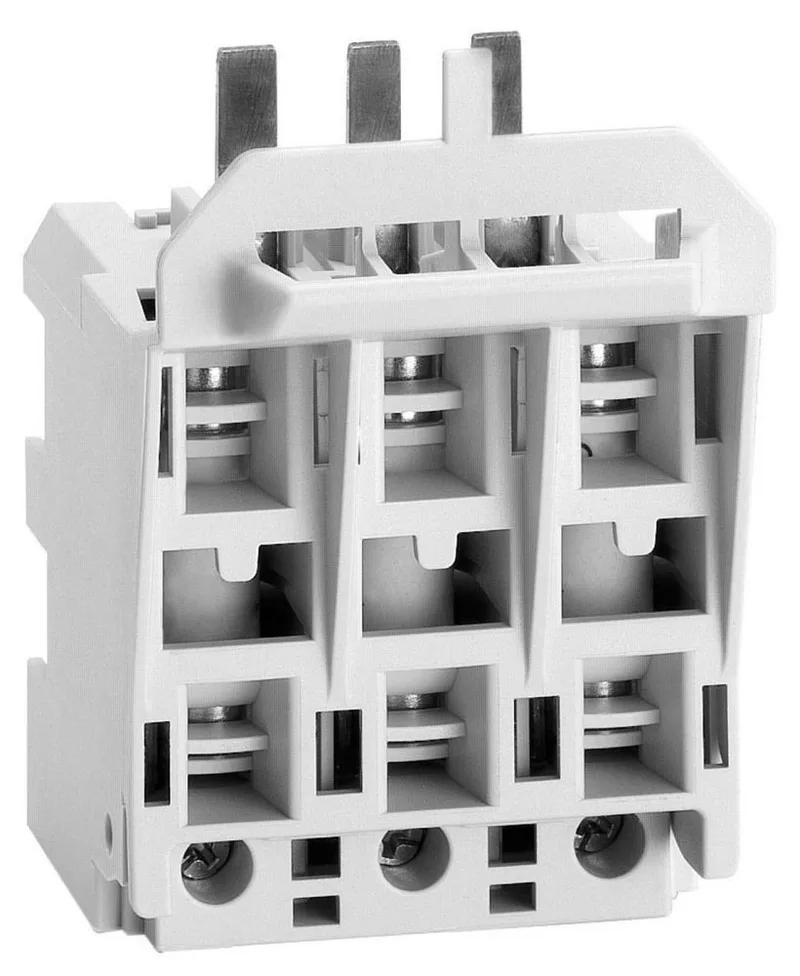

Schneider Electric VLSFH1UL
MPNVLSFH1UL
Active
CC FUSE HOLDER FOR VLS3P016R1 - 32R1|CC FUSE HOLDER FOR VLS3P016R1 - 32R1
$34.29 – $63.59Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Product or component type | Fuse holder |
| Voltage | 690 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 25 A 131 °F (55 °C) |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| IP degree of protection | IP20 IEC 60529 |
| Mounting support | DIN rail |
| Connections - terminals | Power circuit: screw clamp terminals 0.02 in² (10 mm²) solid Power circuit: screw clamp terminals 0.02 in² (16 mm²) flexible without cable end |
| Depth | 3.2 in (80.1 mm) |
| Width | 2.07 in (52.5 mm) |
| Height | 3.0 in (75.2 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | UL 508 CSA C22.2 No 14 IEC 60947-3 |
| Range | TeSys |
| Category | US10CP121734 |
| Fuse size | CC |
| Device short name | VLSFH |
| Tightening torque | Power circuit 15.9...17.7 lbf.in (1.8...2 N.m) screw clamp terminals |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
VLSFH1UL
