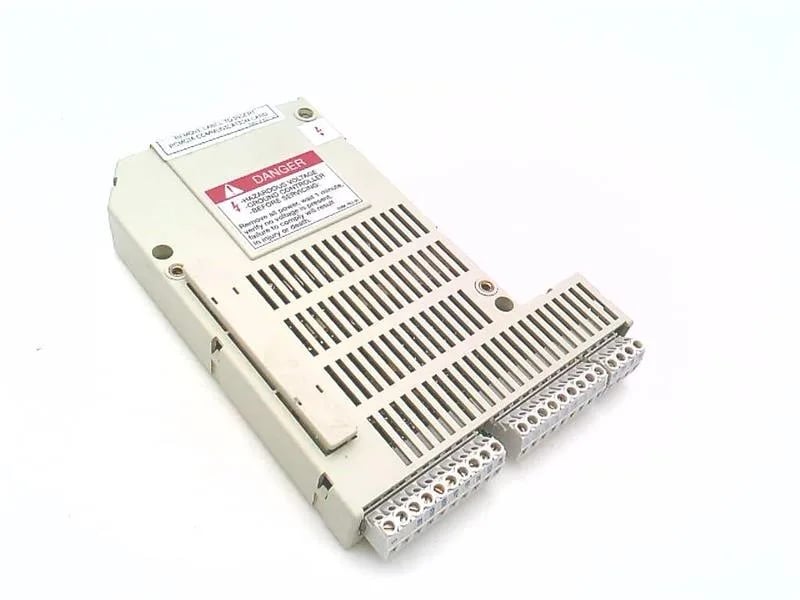

Schneider Electric VW3-A68503
MPNVW3-A68503
VW3-A68503 by TELEMECANIQUE
$768.74Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Voltage max | 5 % |
| Current_max | 1.65 x nominal current (duration = 60 s) |
| Phases | 3 phases |
| Electrical connection | Terminal 6 mm² / AWG 8, 0.8...1 N.m |
| Shock | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Altitude max | 1000 |
| Pollution degree | 2 conforming to EN 50178 |
| Humidity max | 0 |
| Depth | 210 |
| Width | 320 |
| Height | 380 |
All specifications
| Parameter | Value |
|---|---|
| Standards | VDE 0160 level 1 IEC 60076 (with HD398) EN 50178 |
| IP rating | Choke: IP00 Terminals: IP20 |
| Frequency | 50 |
| Inductance | 0.12 mH |
| Thermal losses | 220 W |
| Resistance | 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-6 |
| Leakage distance | 11.5 mm conforming to IEC 60664 |
| Application_type | Reduction of current harmonics |
| Switching current | 235 |
| Storage temperature | -25...70 °C |
| Electrical insulation class | Class F |
| Environmental characteristic | 3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
| Minimum clearance distance min | 5.5 mm IEC 60664 |
| Main_product_or_component_type | Line choke |
| Operating temperature | 45 |
MPN
VW3-A68503
