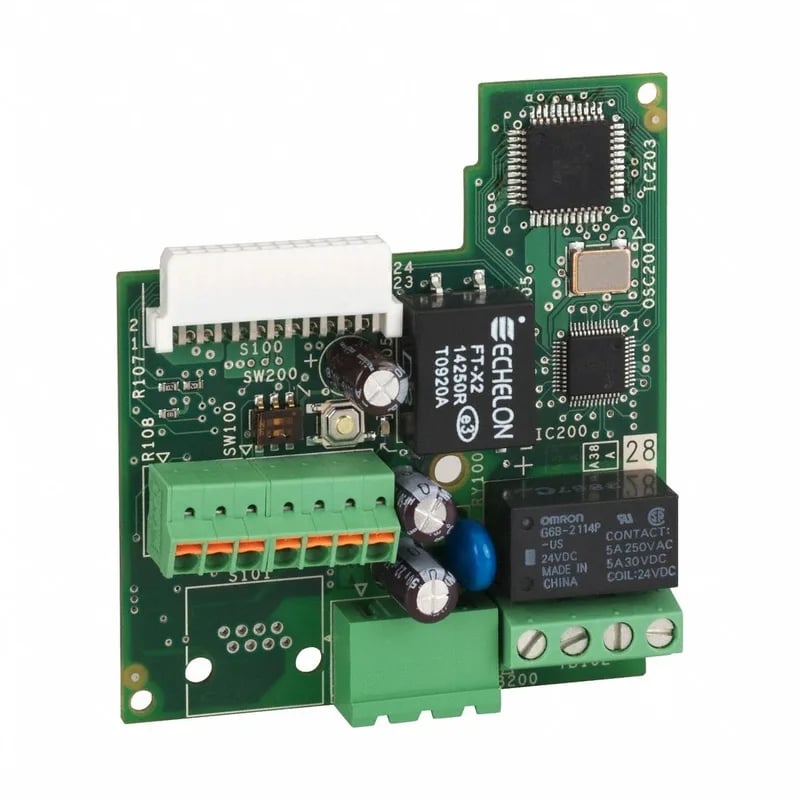

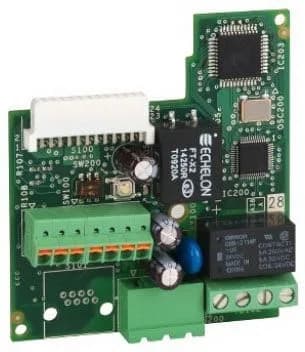

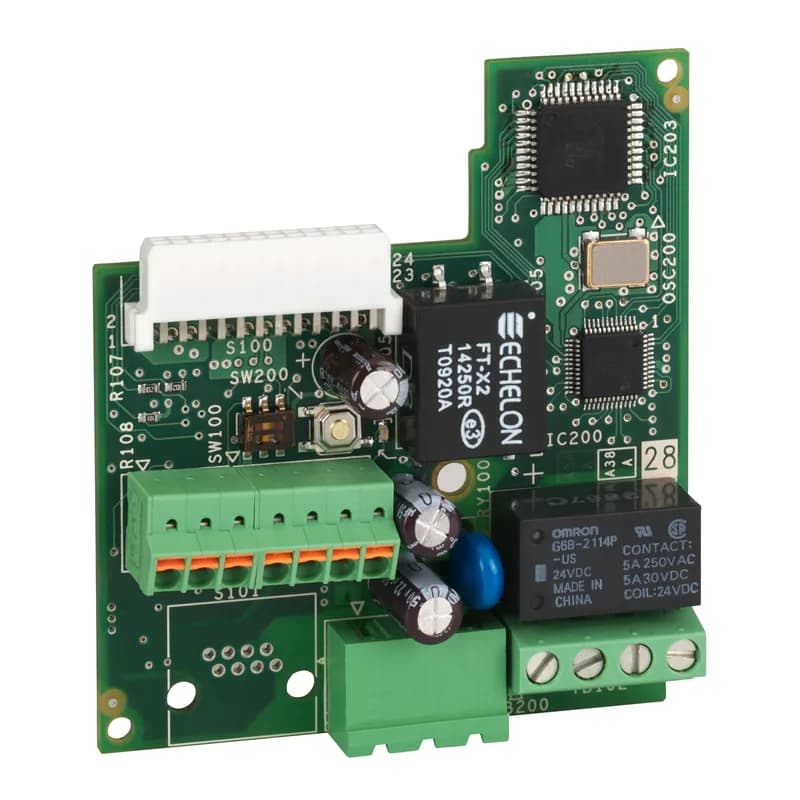

Schneider VW3A21212 LonWorks Module
MPNVW3A21212
Active
communication card LonWorks|communication card LonWorks
$414.00 – $608.71Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | Multifunction programmable logic input F < 24 V DC 5 mA sink or source Multifunction programmable contact input R < 24 V DC 5 mA sink or source Multifunction programmable analog input VIB 10 V DC 30 kOhm |
| Output signal | Multifunction programmable relay output FLA, FLB, FLC 250 V AC 1 A 1 Multifunction programmable relay output FLA, FLB, FLC 250 V AC 0.5 A 0.4 Multifunction programmable relay output FLA, FLB, FLC 30 V DC 0.5 A Power supply output P24 24 V DC 50 mA |
| Product or component type | Communication card |
| Communication port protocol | LonWorks |
| Electrical connection | Screw terminal NETA, NETB LonWorks transmission/reception data Screw terminal SHLD LonWorks communication shield Screw terminal G/E grounding terminal Spring terminal F programmable logic input Spring terminal R programmable contact input Spring terminal VIB multifunction programmable analog input Spring terminal CC control circuit equipotential Spring terminal P24 power supply output Screw terminal FLA, FLB, FLC multifunction programmable relay output |
| Category | US1CP4D22159 |
MPN
VW3A21212
