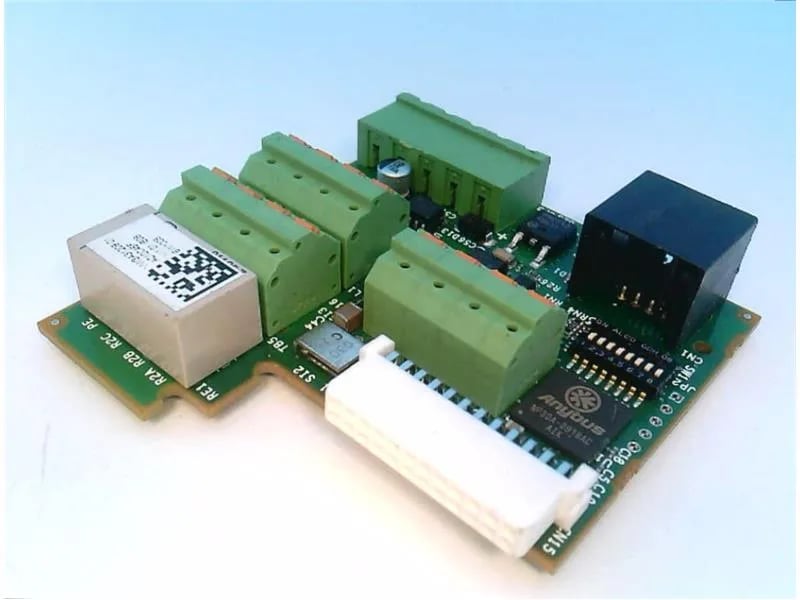

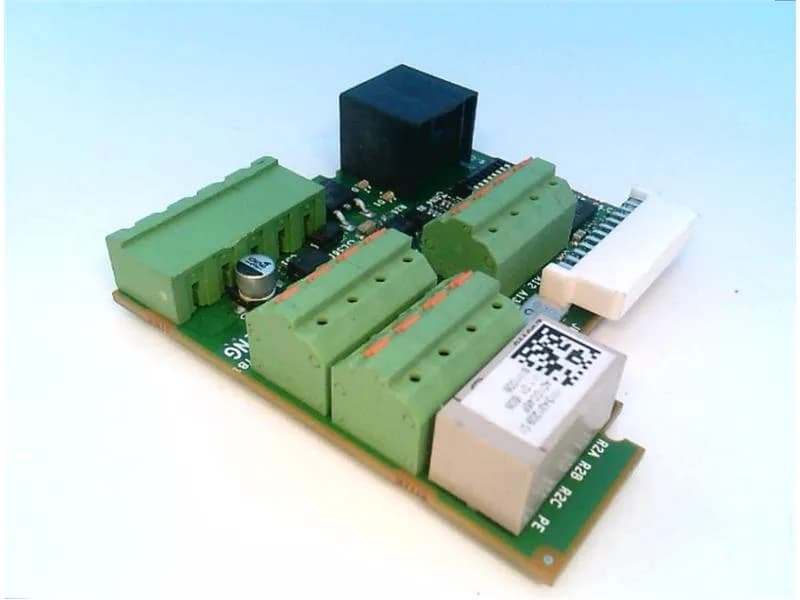

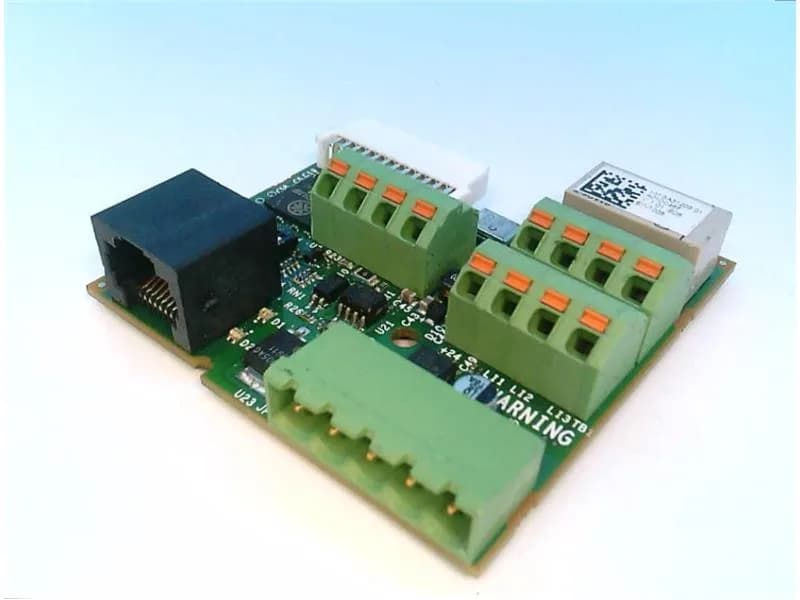

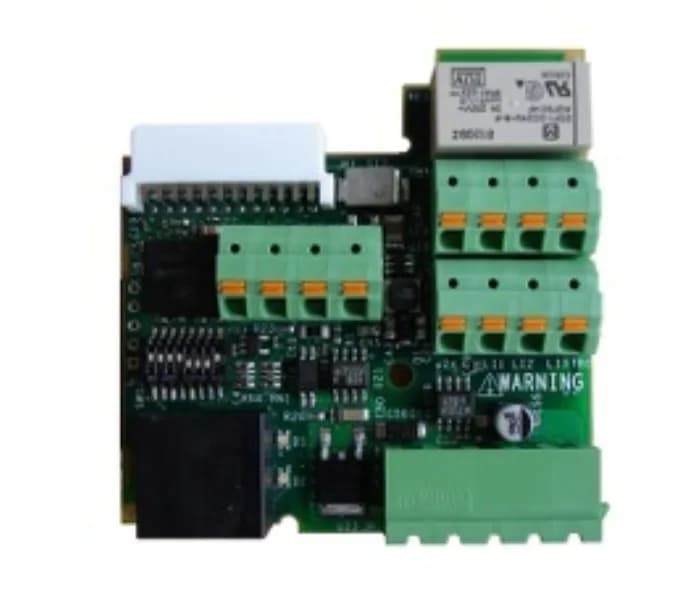

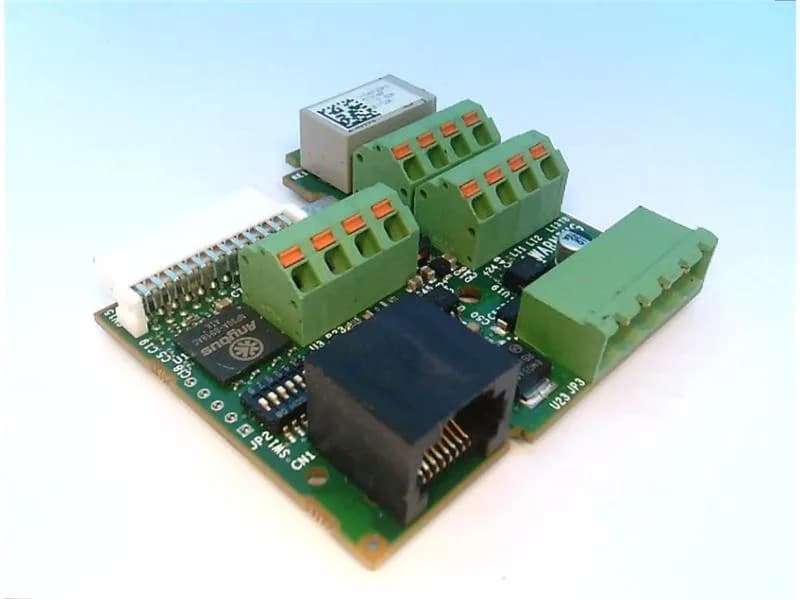

Schneider Electric VW3A31209
MPNVW3A31209
Obsolete
SQD VW3A31209 ATV312 DEVICENET|SQD VW3A31209 ATV312 DEVICENET OPTION CARD
$460.57Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | 1 dual colour LED MNS (status) |
| Product or component type | Communication card |
| Communication service | Periodic variables ODVA AC drive type profile 20, 21, 70 and 71 Periodic variables ATV 312 native profile (CiA 402) 100 and 101 Periodic exchange mode on outputs : polled Communication monitoring can be inhibited Periodic exchange mode on inputs : polled, change of state, cyclic No auto device replacement |
| Communication port protocol | DeviceNet |
| Electrical connection | 1 connector RJ45, Modbus 1 removable screw terminal block for inputs/outputs 5-way screw connector, DeviceNet |
| Category | US1CP4B22154 |
| Transmission rate | 125 kbps, 250 kbps or 500 kbps |
| Input (output number) | AI2 and AI3 2 analog input LI1...LI3 3 logic input R2 1 relay output |
| Number of addresses | 1...63 |
MPN
VW3A31209
