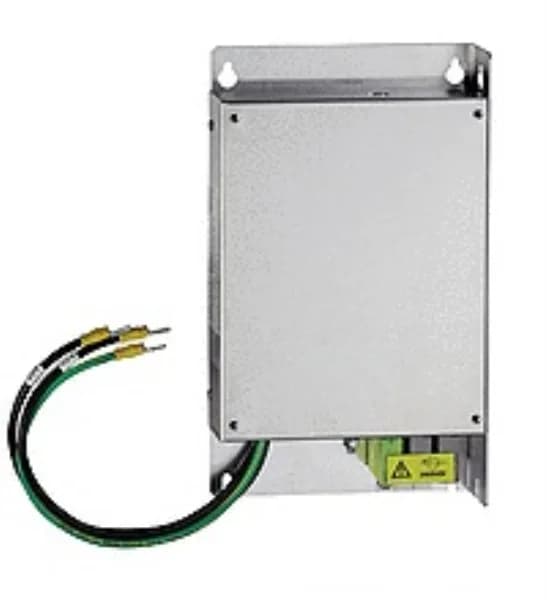

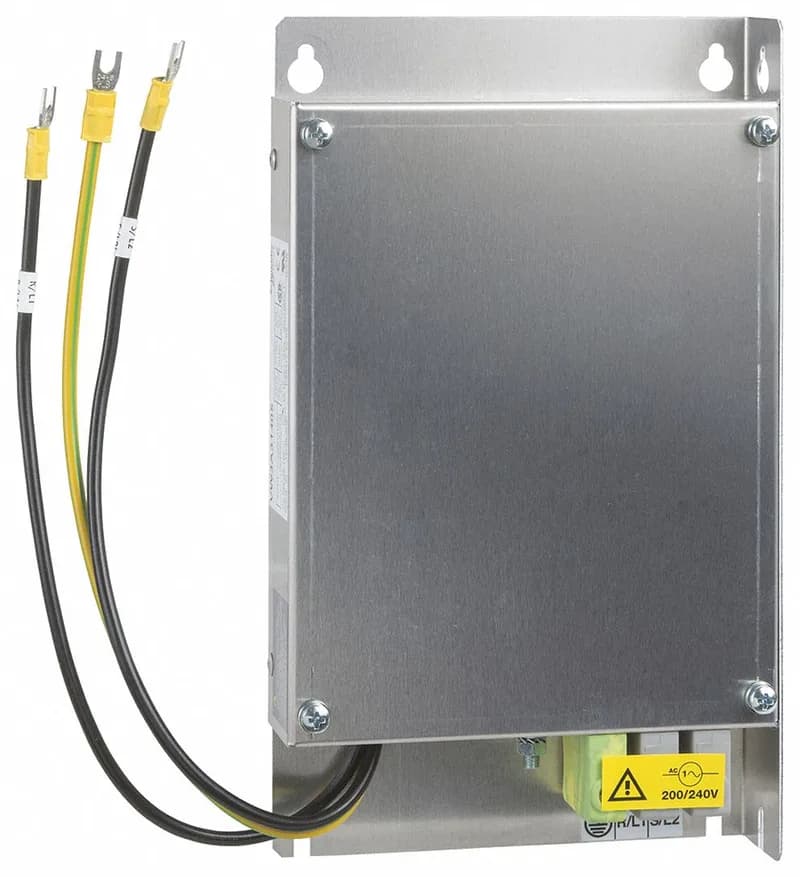

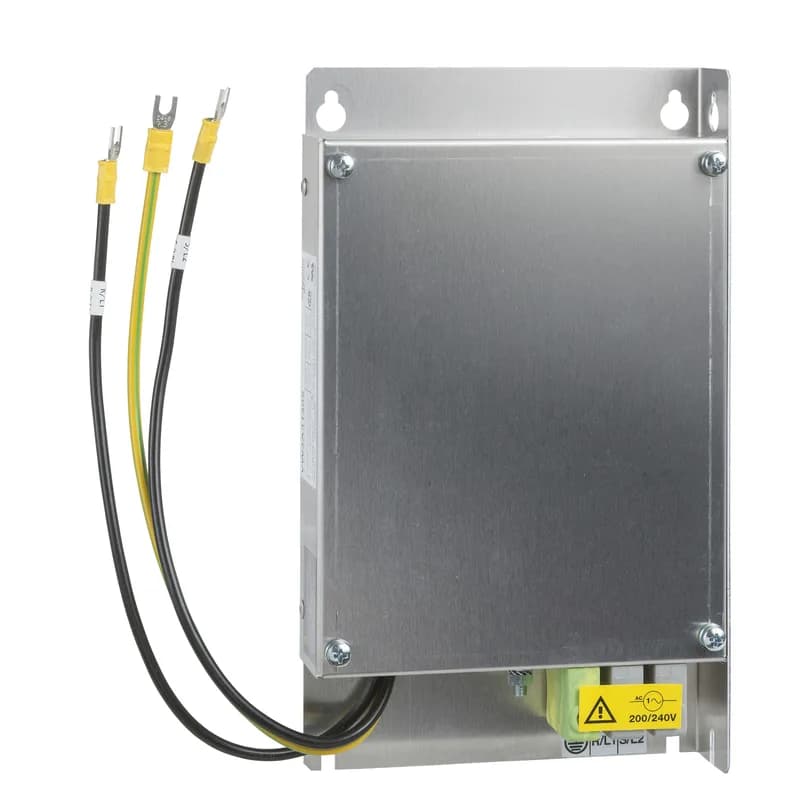

Schneider Electric VW3A31405
MPNVW3A31405
Active
EMC FILTER SIZE 7 M2|EMC FILTER SIZE 7 M2
$87.63Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Power supply voltage | 200...240 V |
| Line rated current | 22 A |
| Maximum earth leakage current | 80 mA 50 Hz |
| Phases | Single phase |
| IP degree of protection | IP20 IP41 upper part) |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 0...93 % IEC 68-2-3 |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-6 |
| Standards | IEC 61800-3 |
| Category | US1CP4B22154 |
| Tolerance | 10 % |
| Thermal losses | 7.5 W ATV31CU22M2 |
| Product specific application | Radio interference input filter |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) |
MPN
VW3A31405
