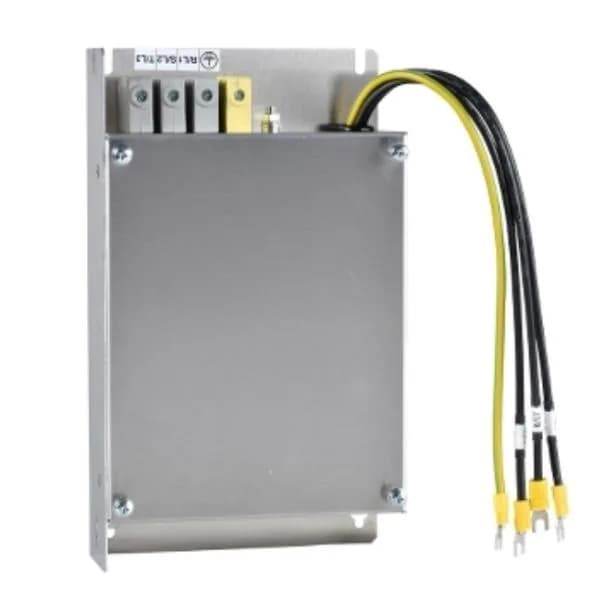

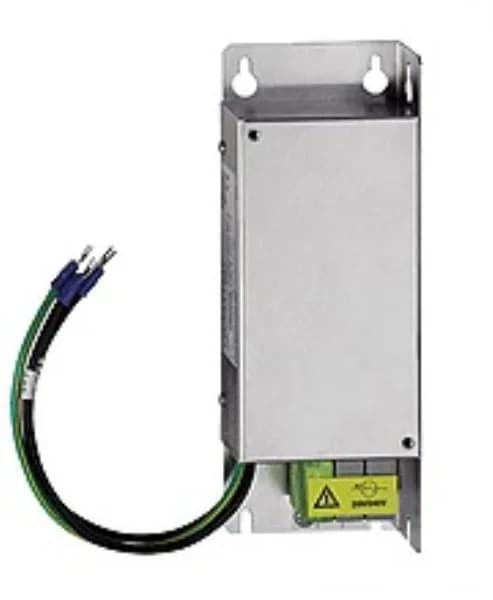

Schneider VW3A31407 EMC Filter
MPNVW3A31407
Active
SCHNEIDER ELECTRIC EMC Filter: VW3A31407
$148.59 – $384.04Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Power supply voltage | 200...240 V 380...500 V |
| Line rated current | 47 A |
| Maximum earth leakage current | 45 mA 50 Hz 20.6 mA 480 V 60 Hz 42.8 mA 480 V 60 Hz |
| Phases | Three phase |
| IP degree of protection | IP20 IP41 upper part) |
| Electrical connection | Terminal 25 mm² AWG 2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 0...93 % IEC 68-2-3 |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-6 |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 61800-3 |
| Category | US1CP4B22154 |
| Tolerance | 10 % |
| Thermal losses | 1.9 W ATV21HU75N4 19.3 W ATV31CU55N4 3.7 W ATV21HU55M3X 3.9 W ATV21HD11N4 6.8 W ATV21HU75M3X |
| Tightening torque | 39.8 lbf.in (4.5 N.m) |
| Product specific application | Radio interference input filter |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) |
MPN
VW3A31407
