Schneider Electric VW3A3202

MPNVW3A3202

Active

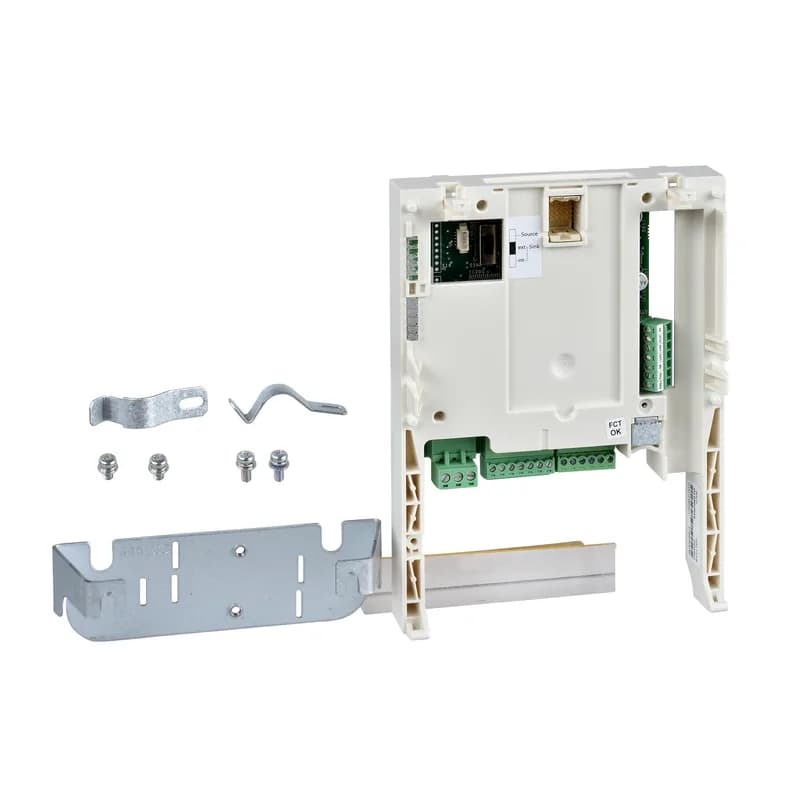

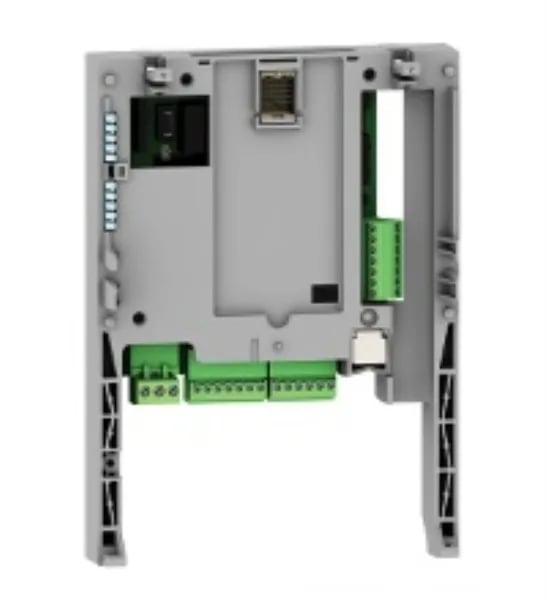

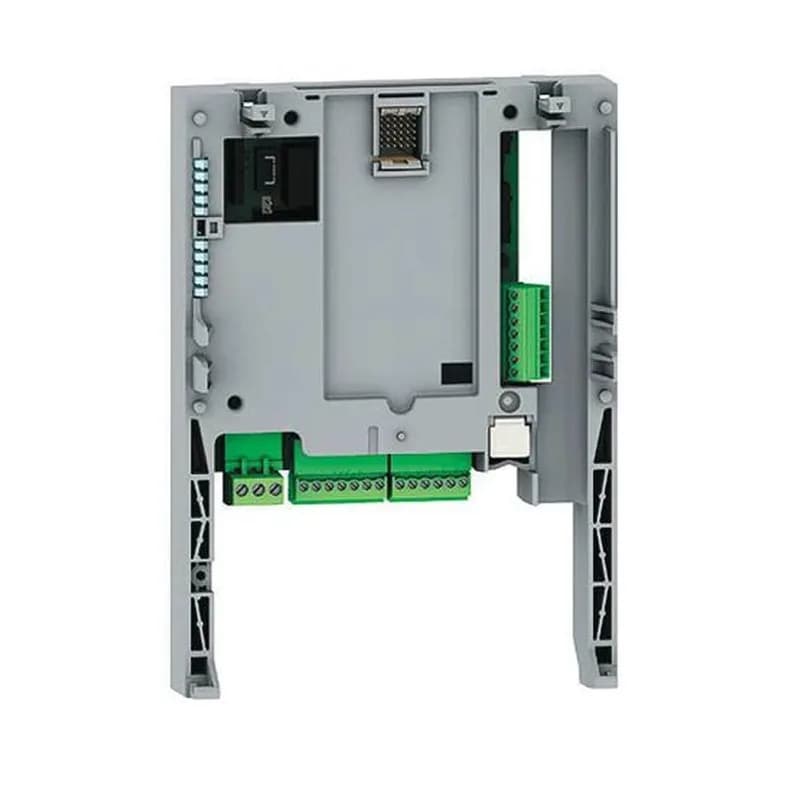

extended I/O card - for ATV61/ATV71|extended I/O card - for ATV61/ATV71

$179.00 – $221.00Ref. price · indicative, final on quote

Request quote

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

VW3A3202 key specifications
Parameter	Value
Analogue input type	AI3-/Al3+ differential current programmable 0...20 mA 250 Ohm 4...6 ms 11 bits + sign AI4 software-configurable current 0...20 mA 250 Ohm 4...6 ms 11 bits AI4 software-configurable voltage 0...10 V DC, 24 V max 30000 Ohm 4...6 ms 11 bits
Discrete input type	RP) frequency control 4...6 ms LI11...LI14) programmable level 1 PLC 3.5 kOhm 4...6 ms
Analogue output type	AO2 software-configurable current 0...20 mA 500 Ohm 4...6 ms 10 bits AO2 software-configurable voltage +/- 10 V DC 470 Ohm 4...6 ms 10 bits AO3 software-configurable current 0...20 mA 500 Ohm 4...6 ms 10 bits AO3 software-configurable voltage +/- 10 V DC 470 Ohm 4...6 ms 10 bits
Discrete output type	LO3, LO4) assignable logic 4...6 ms level 1 PLC R4A, R4B, R4C) configurable relay logic
Product or component type	Extended I/O card
Discrete input voltage	24 V DC <= 30 V)programmable
Discrete output voltage	24 V DC <= 30 V) assignable logic
Maximum output current	0.2 A, assignable logic
Maximum switching current	Configurable relay logic 5 A 250 V AC resistive, cos phi = 1 Configurable relay logic 5 A 30 V DC resistive, cos phi = 1 Configurable relay logic 1.5 A 250 V AC inductive, cos phi = 0.4 7 ms Configurable relay logic 1.5 A 30 V DC inductive, cos phi = 0.4 7 ms
Minimum switching current	3 mA 24 V DC configurable relay logic
Discrete input frequency	0...30 kHz frequency control
Electrical connection	Terminal, 1.5 mm² / AWG 16, 2.21 lbf.in (0.25 N.m)

VW3A3202 additional specifications
Parameter	Value
Electrical durability	100000 cycles configurable relay logic
Supply	Internal supply for reference potentiometer, 10.5 V DC 10...11 V) , Internal supply, 24 V DC 21...27 V) , <0.2 A overload and short-circuit protection
Category	US1CP4C22135
PTC probe input	TH2+, TH2- trip resistance 3 kOhm TH2+, TH2- reset resistance 1.8 Ohm TH2+, TH2- short circuit protection < 0.05 Ohm TH2+, TH2- for 6 PTC probe <= 1.5 Ohm
Discrete input logic	Negative LI11...LI14), >= 16 V, Positive LI11...LI14), Positive RP), < 1.2 V, >= 3.5 V
Analogue input number	2
Discrete input number	6
Discrete output logic	LO3, LO4) negative LO3, LO4) positive
Analogue output number	2
Discrete output number	5
