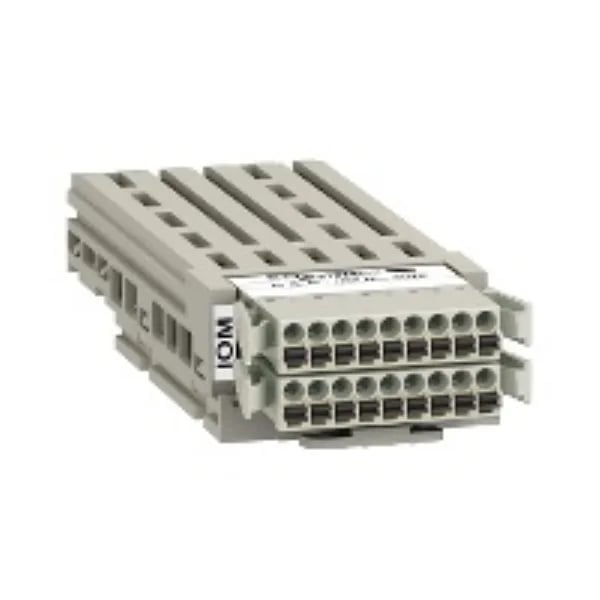

Schneider Electric VW3A3203
MPNVW3A3203
Active
EXTENDED I/O MOD DISCRETE 6I/20 - 2I ANALOG|EXTENDED I/O MOD DISCRETE 6I/20 - 2I ANALOG
$76.20 – $204.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Reverse polarity protection digital input Short-circuit protection output |
| Input (Output type) | 2 analog input configurable voltage, current or probe 6 discrete input 2 discrete output |
| Analogue input type | AI4, AI5 configurable current 0...20 mA/4...20 mA 0...1 ms 14 bits AI4, AI5 configurable voltage - 10...10 V DC, 24 V max 20 kOhm 0...1 ms 14 bits AI4, AI5 configurable PTC, Pt 100, Pt 1000 0...1 ms 14 bits |
| Discrete input type | DI11...DI16) programmable 250 Ohm 1 ms |
| Discrete output type | DQ11, DQ12) assignable logic 1 ms |
| Product or component type | Additional I/O module |
| Discrete input voltage | 24 V DC <= 30 V)programmable |
| Discrete output voltage | 24 V DC <= 30 V) assignable logic |
| Discrete input current | 2.5 mA |
| Maximum output current | 100 mA, assignable logic |
| Electrical connection | Removable spring terminal block, 1.5 mm² / AWG 16 |
| Category | US1CP4E22206 |
| Discrete input logic | Negative DI11...DI16) Positive DI11...DI16) |
| Analogue input number | 2 |
| Discrete input number | 6 |
| Discrete output logic | DQ11, DQ12) negative DQ11, DQ12) positive |
| Discrete output number | 2 |
MPN
VW3A3203
