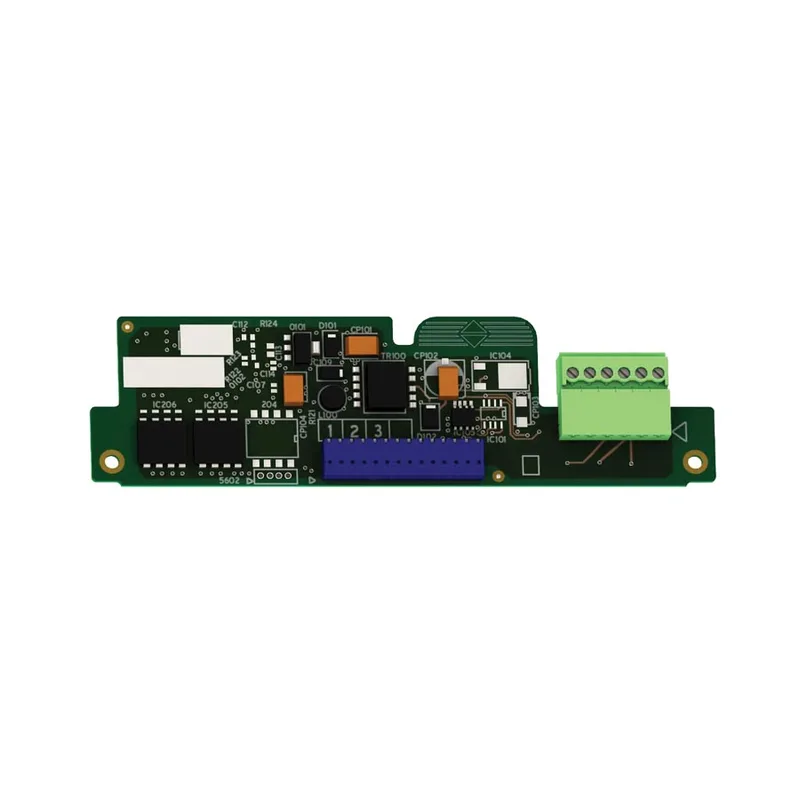

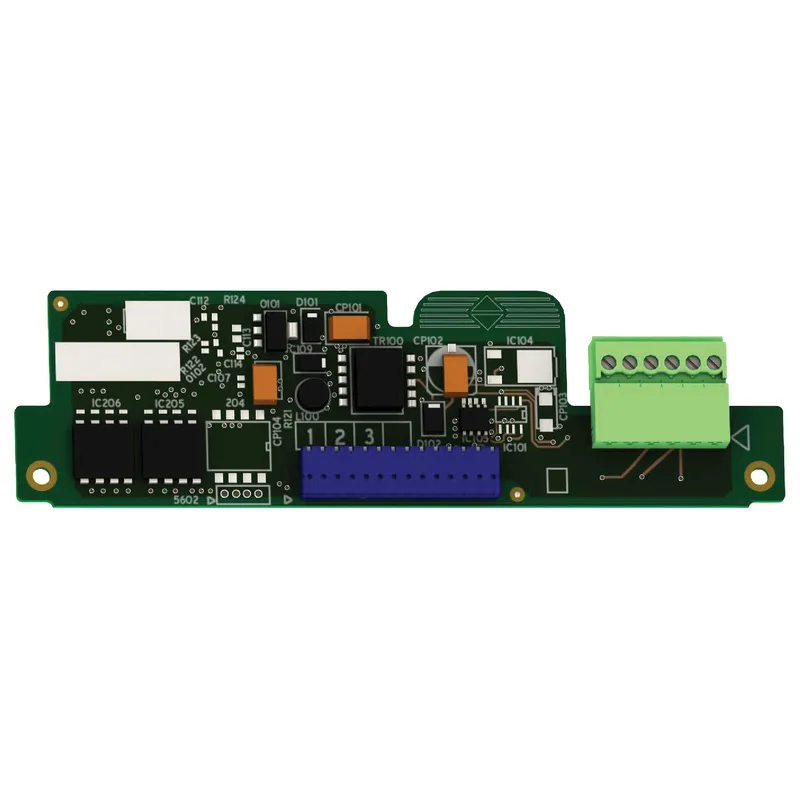

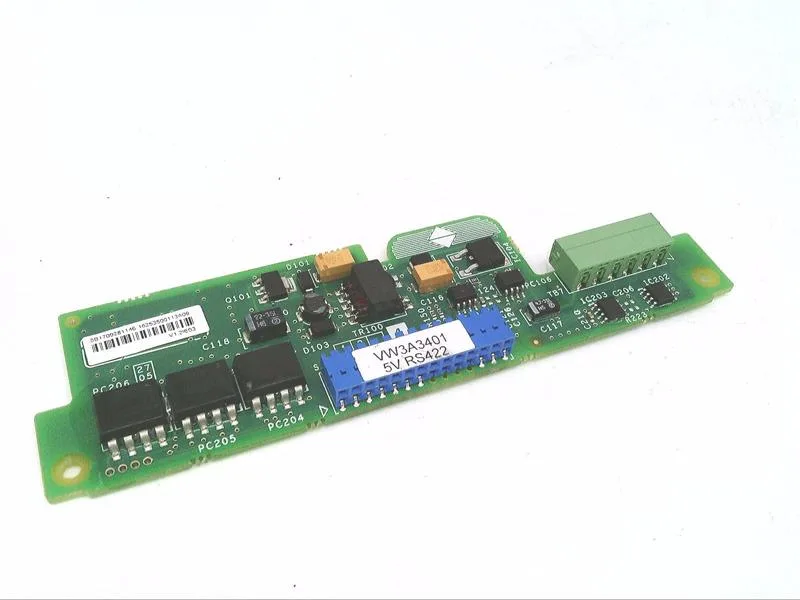

Schneider Electric VW3A3401
MPNVW3A3401
Active
encoder interface card with RS422 compatible differential outpts - 5 V DC|encoder interface card with RS422 compatible differential outpts - 5 V DC
$96.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Short-circuit protection Overload protection |
| Range of product | Altivar |
| Discrete output type | Differential |
| Product or component type | Encoder interface card |
| Supply voltage | 5 V DC 5...5.5 V) |
| Maximum supply current | 0.2 A |
| Maximum operating frequency | 300 kHz |
| Communication port protocol | RS422 |
| Electrical connection | Terminal 0.2 mm² AWG 24) Terminal 0.5 mm² AWG 20) Terminal 0.5 mm² AWG 20) Terminal 0.75 mm² AWG 18) <164.04 ft (50 m), encoder, 200 mA 4.5 V |
| Maximum cable distance between devices | 164.04 ft (50 m) |
| Category | US1CP4C22135 |
| Input signal | A B compliment of A compliment of B |
| Input impedance | 440 Ohm |
| Number of pulses per revolution | 10000 ATV71H......383 5000 all ATV61 drives 5000 ATV71H...M3 5000 ATV71H...M3X 5000 ATV71H...N4 |
MPN
VW3A3401
