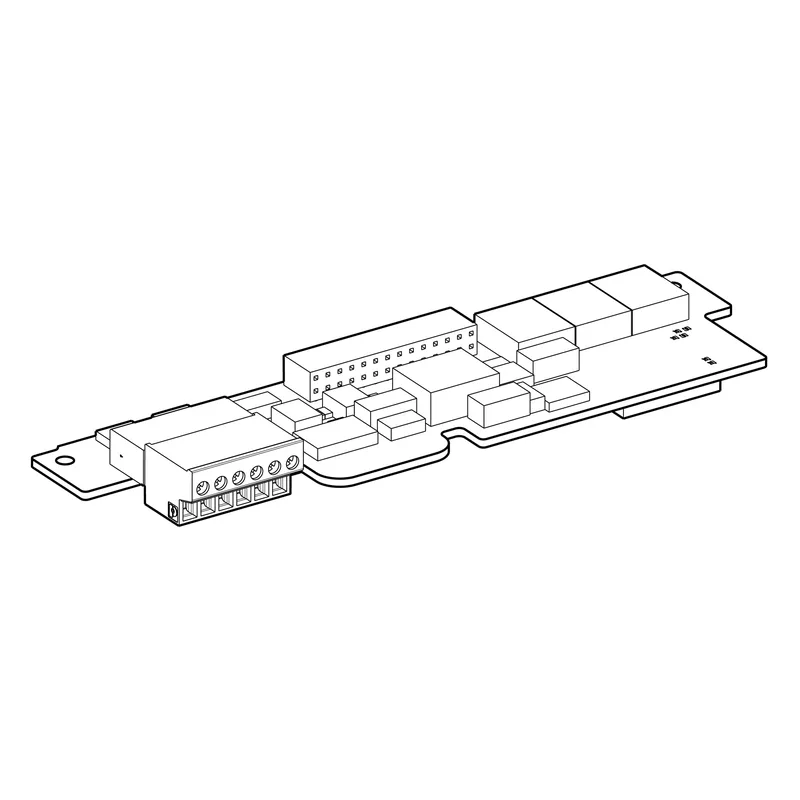

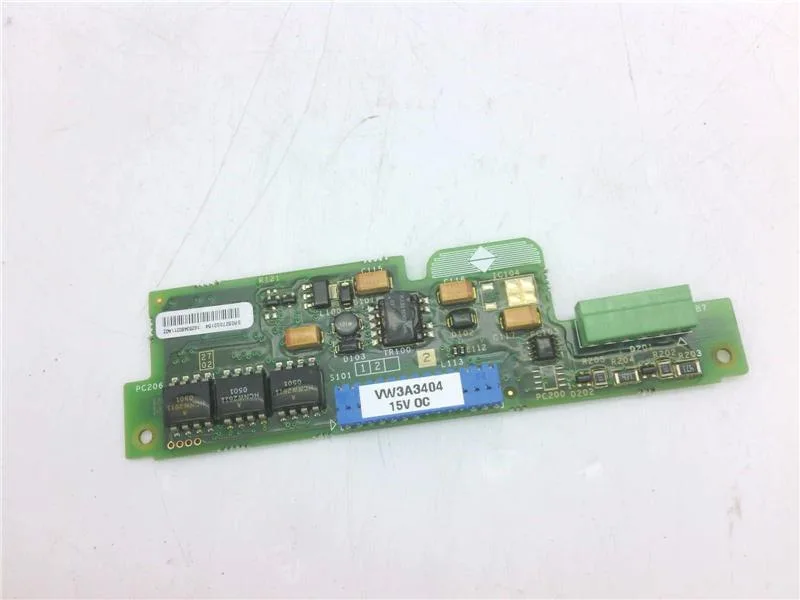

Schneider Electric VW3A3404
MPNVW3A3404
Active
ENCODER CARD OPEN COLLECTOR 15 VDC A|ENCODER CARD OPEN COLLECTOR 15 VDC A
$128.27 – $180.59Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Overload protection Short-circuit protection |
| Range of product | Altivar |
| Discrete output type | Open collector |
| Product or component type | Encoder interface card |
| Supply voltage | 15 V DC 15...16 V) |
| Maximum supply current | 0.175 A |
| Maximum operating frequency | 300 kHz |
| Electrical connection | Terminal 0.2 mm² AWG 24) Terminal 0.2 mm² AWG 24) Terminal 0.2 mm² AWG 24) Terminal 0.2 mm² AWG 24) Terminal 0.5 mm² AWG 20) Terminal 0.5 mm² AWG 20) <1640.4 ft (500 m), encoder, 175 mA 10 V |
| Maximum cable distance between devices | 1640.4 ft (500 m) |
| Category | US1CP4C22135 |
| Input signal | A B compliment of A compliment of B/AB/A |
| Input impedance | 1 kOhm |
| Number of pulses per revolution | 10000 ATV71H......383 5000 all ATV61 drives 5000 ATV71H...M3 5000 ATV71H...M3X 5000 ATV71H...N4 |
MPN
VW3A3404
