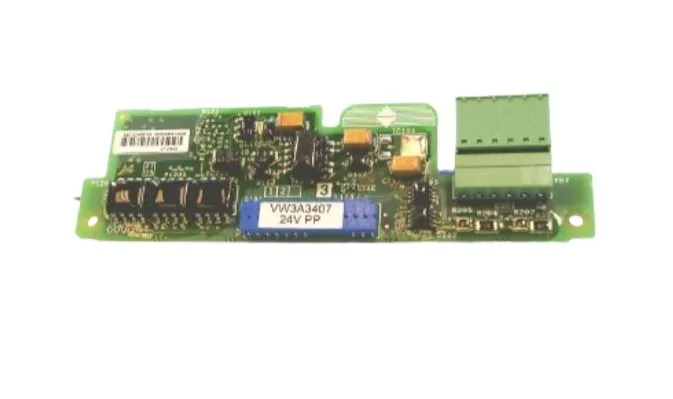

Schneider Electric VW3A3407
MPNVW3A3407
Active
Encoder Interface Card
$137.16 – $141.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Overload protection Short-circuit protection |
| Range of product | Altivar |
| Discrete output type | Push-pull |
| Product or component type | Encoder interface card |
| Supply voltage | 24 V DC 20...30 V) |
| Voltage state 0 guaranteed | 11.5...< 25 V |
| Maximum supply current | 0.175 A |
| Maximum operating frequency | 300 kHz |
| Electrical connection | Terminal 0.2 mm² AWG 24) <1640.4 ft (500 m), encoder, 100 mA 14 V |
| Maximum cable distance between devices | 1640.4 ft (500 m) |
| Category | US1CP4C22135 |
| Input signal | A B compliment of A compliment of B/AB/A |
| Input impedance | 1000 Ohm |
| Number of pulses per revolution | 10000 ATV71H......383 5000 all ATV61 drives 5000 ATV71H...M3 5000 ATV71H...M3X 5000 ATV71H...N4 |
MPN
VW3A3407
