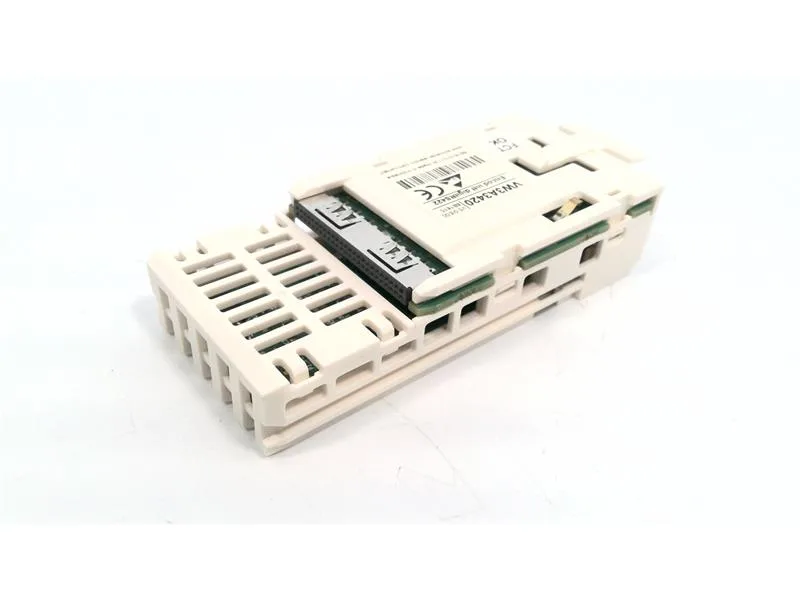

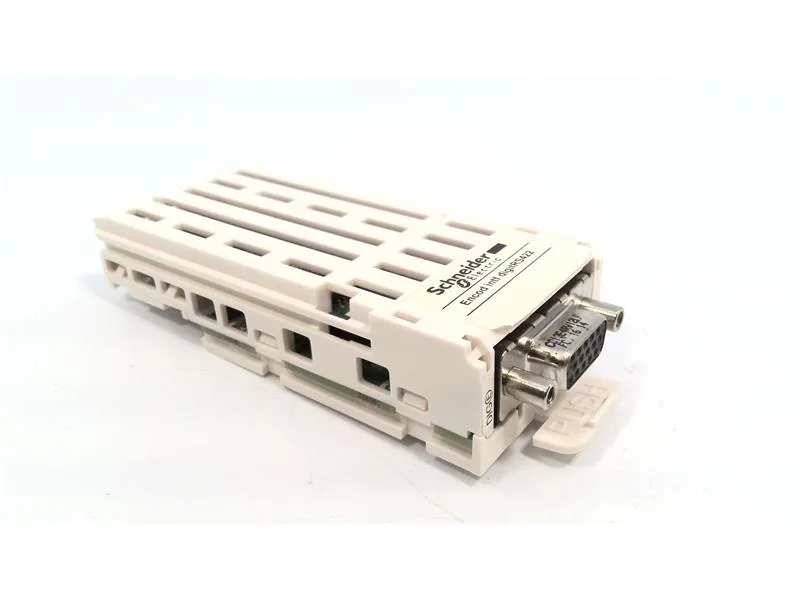

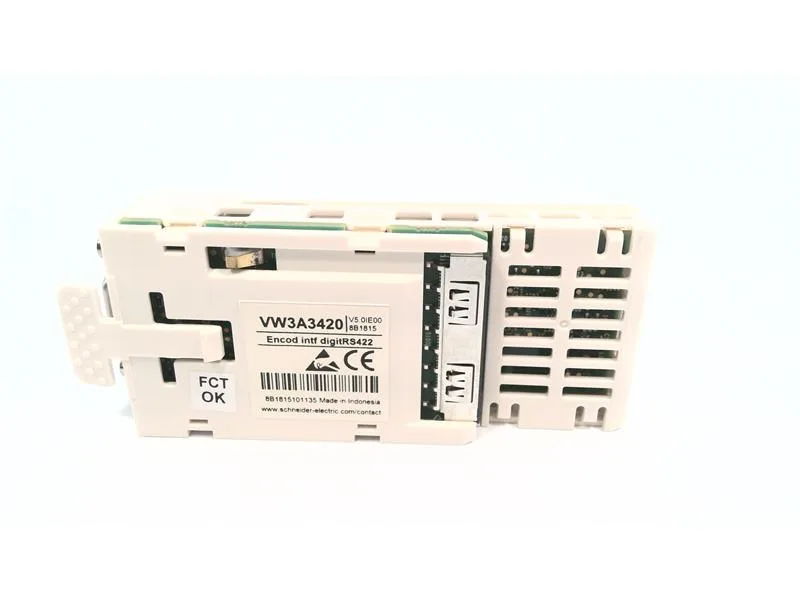

Schneider Electric VW3A3420
MPNVW3A3420
Active
ENCODER INTERFACE MODULE DIGITAL 5/12V|ENCODER INTERFACE MODULE DIGITAL 5/12V
$106.68 – $130.47Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | EnDat 2.2 A/B/I incremental XCC1 type R A/B/I incremental XCC1 type X SSI absolute encoder XCC2 type SG SSI absolute encoder XCC3 type SB |
| Connector type | 1 female high density SUB-D 15 |
| Protection type | Short-circuit protection Overload protection |
| Range of product | Altivar |
| Product or component type | Digital encoder interface module |
| Supply voltage | 5 V DC 4.75...5.25 V) 12 V DC 11.4...12.6 V) 24 V DC 22.8...25.2 V) |
| Maximum supply current | 0.25 A 5 V DC 0.1 A 12 V DC 0.1 A 24 V DC |
| Maximum operating frequency | 1000 kHz |
| Communication port protocol | RS422 |
| Maximum cable distance between devices | 328.08 ft (100 m) A/B/I) 164.04 ft (50 m) SSI) 328.08 ft (100 m) SSI)at 300 kHz 164.04 ft (50 m) EnDat 2.2) 328.08 ft (100 m) EnDat 2.2)with propagation delay compensation |
| Output signal | Clock+, Clock- SSI) Data+, Data-, Clock+, Clock- EnDat 2.2) |
| Category | US1CP4E22209 |
| Input signal | Data+, Data- EnDat 2.2) Data+, Data- SSI) Temp+, Temp- A+,A-/B+,B-/I+,I- A/B/I) TTL |
| Input impedance | 121 Ohm |
MPN
VW3A3420
