Schneider Electric VW3A3422
MPNVW3A3422
Active

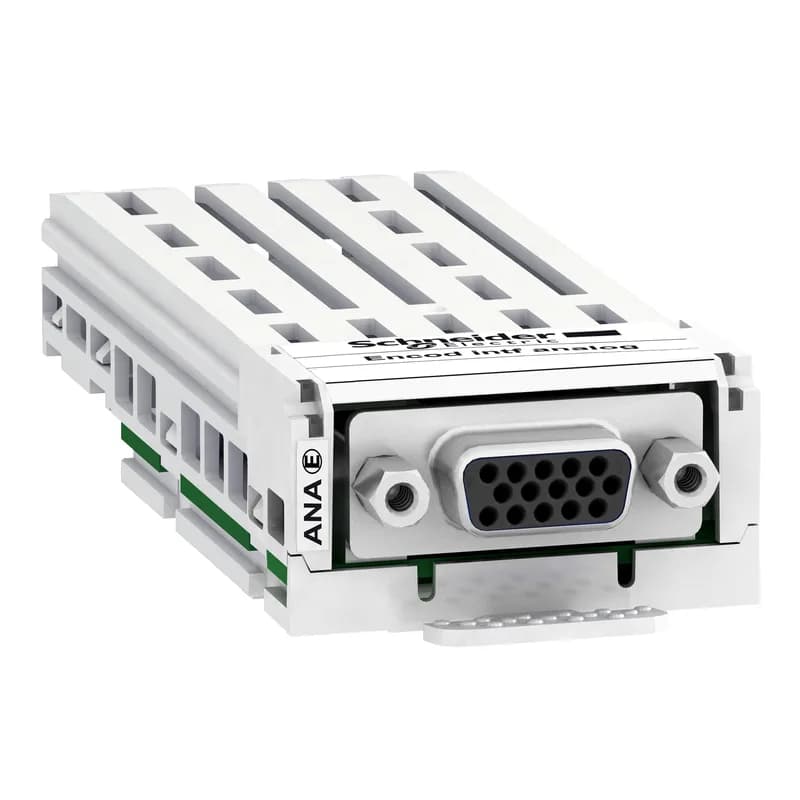

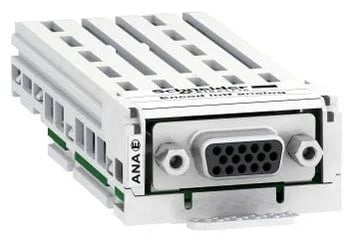

Square D VW3A3422 Encoder Interface Module|Square D VW3A3422 Encoder Interface Module
$121.92Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | SinCos Hiperface 1 Vpp |
| Connector type | 1 female high density SUB-D 15 |
| Protection type | Overload protection Short-circuit protection |
| Range of product | Altivar |
| Product or component type | Analog encoder interface module |
| Supply voltage | 5 V DC 4.75...5.25 V) 12 V DC 11.4...12.6 V) 24 V DC 22.8...25.2 V) |
| Maximum supply current | 0.25 A 5 V DC 0.1 A 12 V DC 0.05 A 24 V DC |
| Maximum operating frequency | 100 kHz |
| Maximum cable distance between devices | 328.08 ft (100 m) |
| Output signal | Data+, Data- |
| Category | US1CP4E22209 |
| Input signal | Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp- |
MPN
VW3A3422
