Schneider Electric VW3A3423
MPNVW3A3423
Active

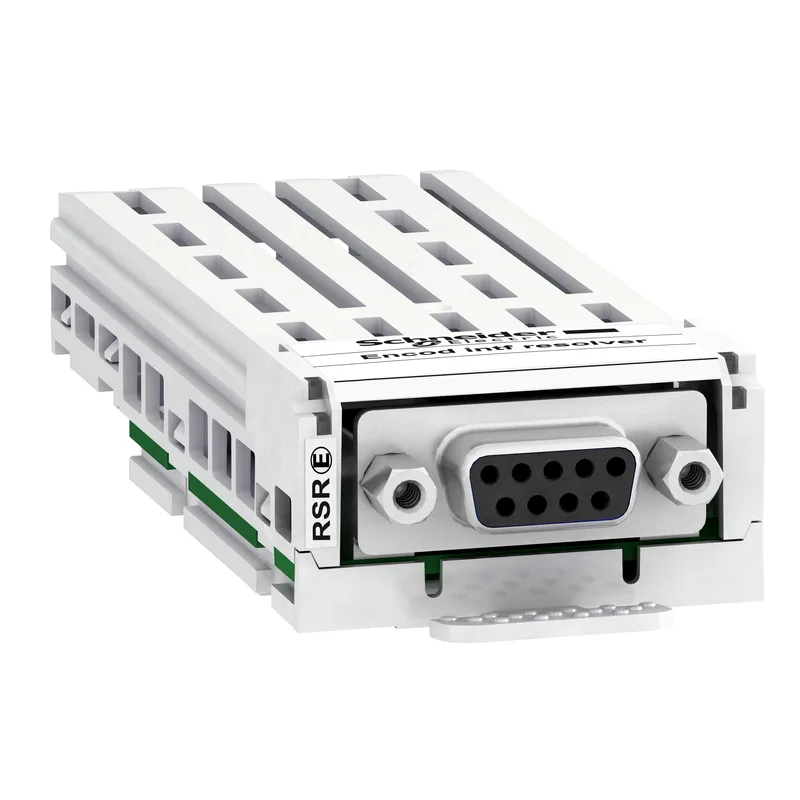

Square D VW3A3423 Resolver Interface Module|Square D VW3A3423 Resolver Interface Module
$121.92 – $137.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | Resolver |
| Connector type | 1 female SUB-D 9 |
| Protection type | Overload protection Short-circuit protection |
| Range of product | Altivar |
| Product or component type | Encoder interface module |
| Maximum supply current | 0.05 A |
| Maximum operating frequency | 12 kHz |
| Maximum cable distance between devices | 328.08 ft (100 m) |
| Output signal | Ref+, Ref- |
| Ratio | 3/10, 1/2, 3/4, 1 |
| Category | US1CP4E22209 |
| Input signal | Sin+, Sin-, Cos+, Cos-, Temp+, Temp- |
MPN
VW3A3423
