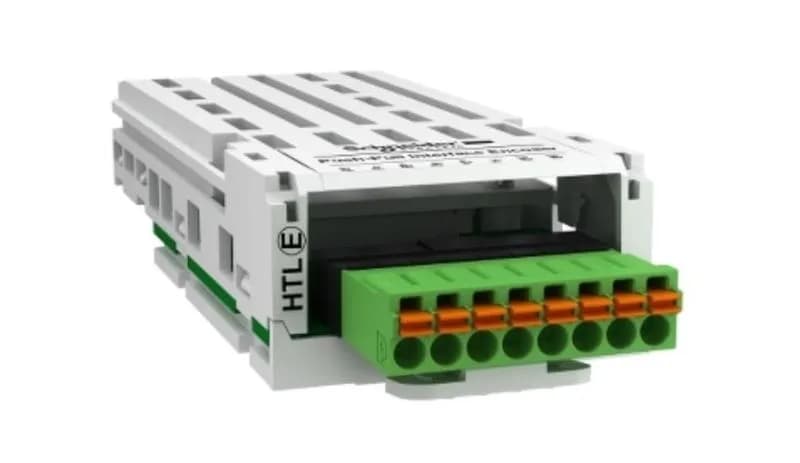

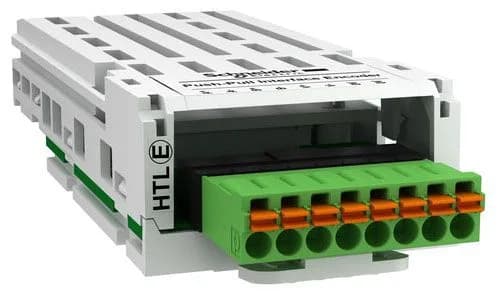

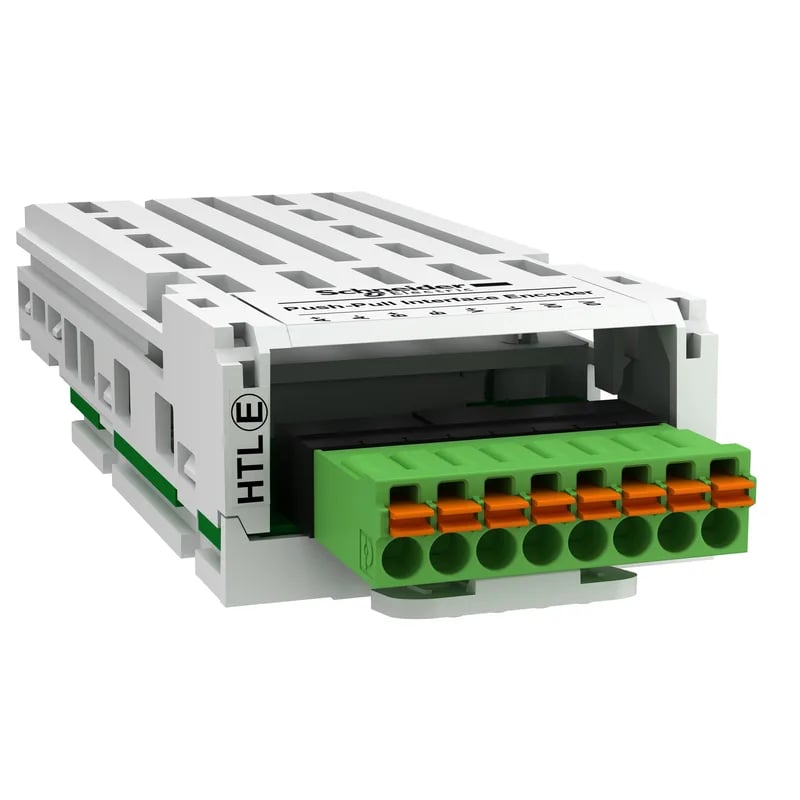

Schneider VW3A3424 Encoder Module
MPNVW3A3424
Active
HTL ENCODER INTERFACE MODULE|HTL ENCODER INTERFACE MODULE
$43.09 – $123.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Encoder type | High threshold logic (HTL) |
| Connector type | 1 removable spring connector |
| Protection type | Short-circuit protection Overload protection |
| Range of product | Altivar |
| Product or component type | Encoder interface module |
| Supply voltage | 12 V DC 15 V DC 24 V DC |
| Maximum supply current | 0.2 A 12 V DC 0.175 A 15 V DC 0.1 A 24 V DC |
| Maximum operating frequency | 300 kHz |
| Maximum cable distance between devices | 1640.4 ft (500 m) |
| Category | US1CP4E22209 |
| Input signal | Push-pull differential A/AB/B Push-pull single ended AB Push-pull single ended A Open collector differential A/AB/B Open collector PNP AB Open collector NPN AB Open collector PNP A Open collector NPN A |
MPN
VW3A3424
