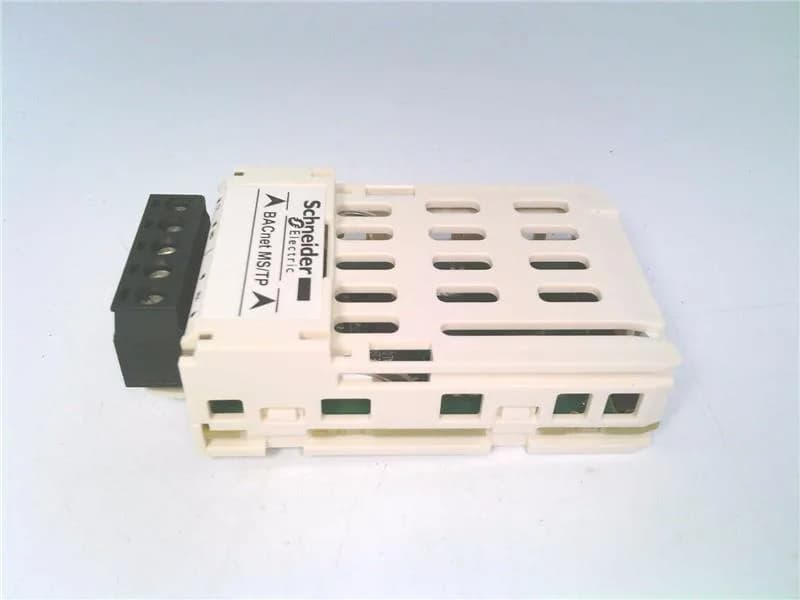

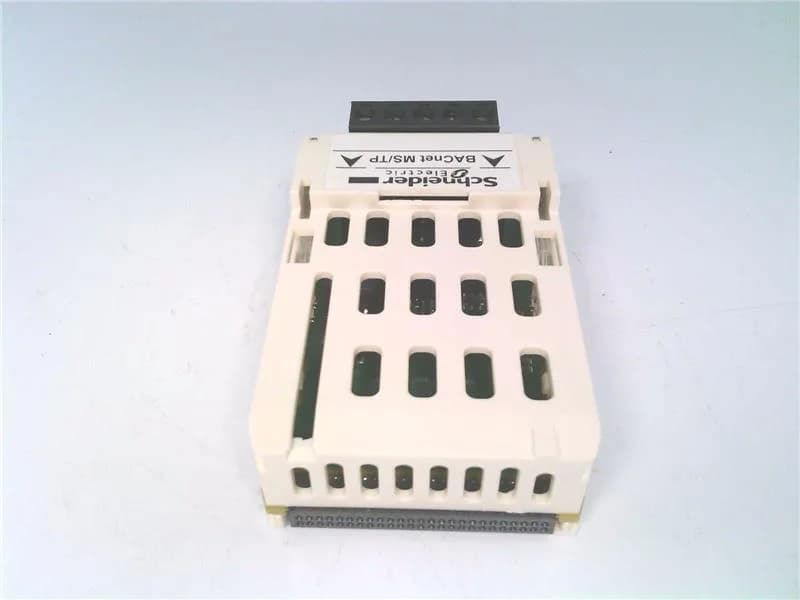

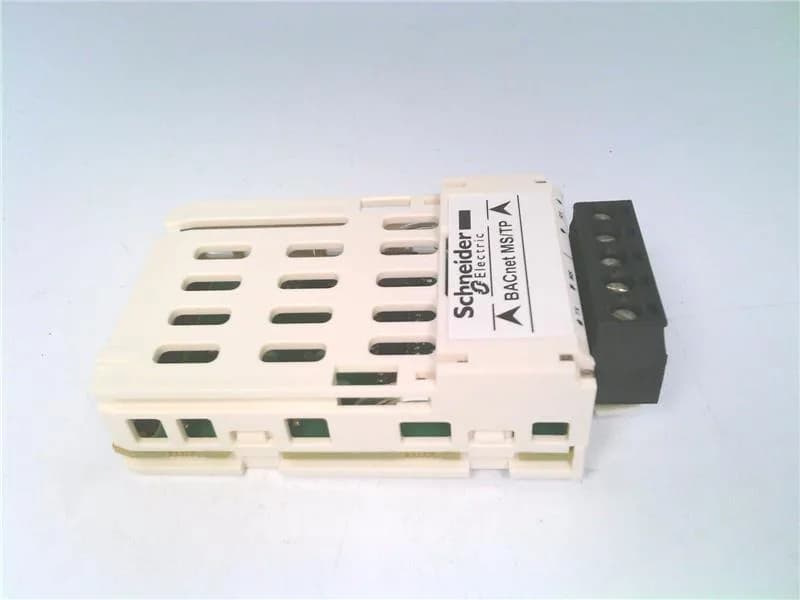

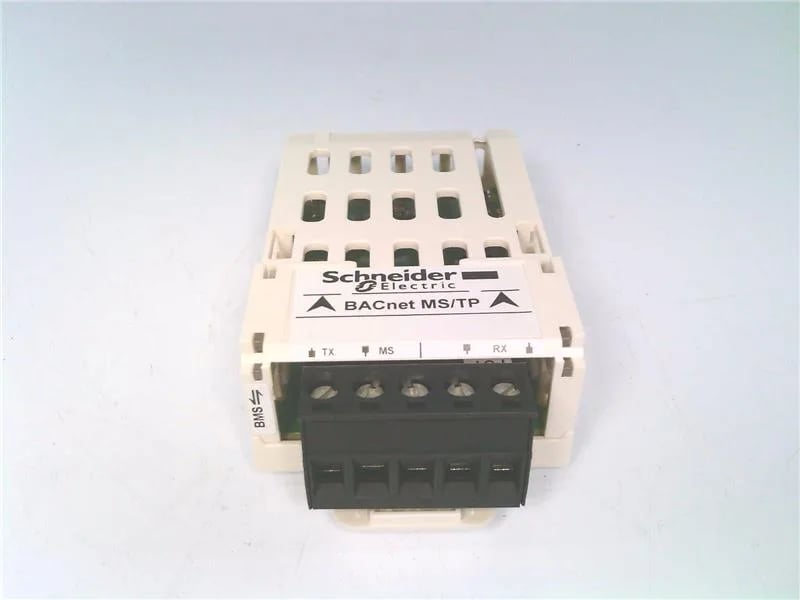

Schneider Electric VW3A3725
MPNVW3A3725
Active
BACNET MS/TP COMMUNICATION MODULE - ALTIVAR PROCE|BACNET MS/TP COMMUNICATION MODULE - ALTIVAR PROCESS ATV600
$152.40Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | 1 LED error 1 LED transmission activity 1 LED reception activity (RX) 1 LED module status |
| Range of product | Altivar |
| Product or component type | Communication module |
| Communication network type | RS485 |
| IP degree of protection | IP20 |
| Communication service | AV, BV, MSV BACnet MS/TP COV notification |
| Communication port protocol | BACnet MS/TP |
| Electrical connection | Screw terminal block 5-pin removable terminal block, BACnet MS/TP |
| Shock resistance | 15 gn 11 ms |
| Storage altitude | 0...10000 ft (0...3048 m) |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
All specifications
| Parameter | Value |
|---|---|
| Vibration resistance | 1.5 mm 3...13 Hz) 1 mm 13...23 Hz) 2 gn 13...150 Hz) |
| Category | US1CP4E22276 |
| Transmission rate | 9.6, 19.2, 38.4, 76.8 kbit/s |
| Transmission support medium | 2 twisted pairs |
| Electromagnetic compatibility | EMC immunity conforming to IEC 61000-6-1 EMC immunity level 2 conforming to IEC 60730-1 Electrostatic discharge level 3B conforming to IEC 61000-4-2 Radiated RF fields level 3A conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4 Surge immunity test level 3 conforming to IEC 61000-4-5 Conducted RF disturbances level 3A conforming to IEC 61000-4-6 Conducted EMC level 2 conforming to IEC 60730-1 Conducted EMC conforming to IEC 61000-6-3 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | -4...149 °F (-20...65 °C) |
MPN
VW3A3725
