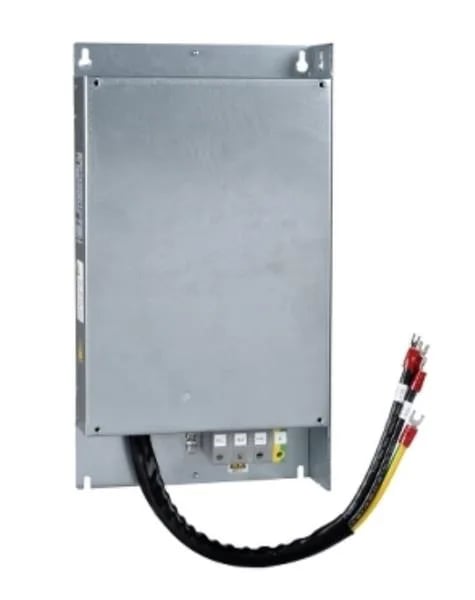

Schneider VW3A4402 EMC Filter
MPNVW3A4402
Obsolete
VW3A4402 - EMC INPUT FILTER by SCHNEIDER ELECTRIC
$713.69Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Power supply voltage | 200...240 V 380...500 V |
| Line rated current | 26 A |
| Maximum earth leakage current | 8 mA 400 V 50 Hz 4.4 mA 400 V 50 Hz |
| Phases | Three phase |
| IP degree of protection | IP20 IP41 upper part) |
| Electrical connection | Terminal 6 mm² AWG 8 |
| Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 0...93 % IEC 68-2-3 |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-6 |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN 133200 |
| Category | US1CP4C22135 |
| Tolerance | 10 % |
| Thermal losses | 18 W 200...240 V AC ATV61/ATV71 variable speed drives 6 W 380...480 V AC ATV61/ATV71 variable speed drives |
| Tightening torque | 13.3 lbf.in (1.5 N.m) |
| Product specific application | Radio interference input filter |
| Ambient air temperature for storage | -40...149 °F (-40...65 °C) |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) |
MPN
VW3A4402
