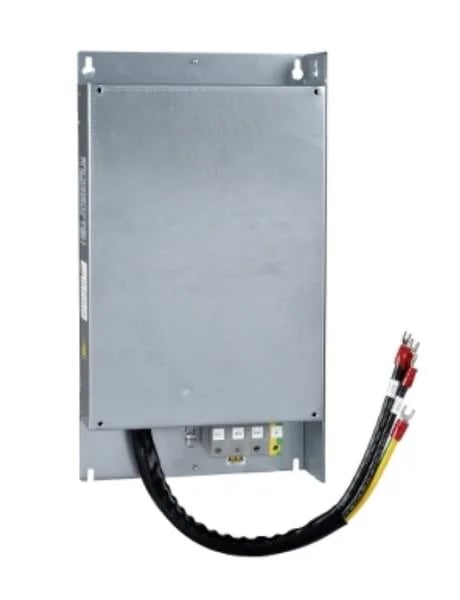

Schneider VW3A4403 EMC Input Filter
MPNVW3A4403
Obsolete
VW3A4403 - EMC FOOTPRINT FILTER by SQUARE D
$247.41Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Power supply voltage | 380...500 V 200...240 V |
| Current | 35 A |
| Maximum earth leakage current | 7 mA at 400 V 50 Hz 3 mA at 400 V 50 Hz |
| Network number of phases | Three phase |
| IP degree of protection | IP20 IP41 (upper part) |
| Electrical connection | Terminal 10 mm² AWG 6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 0...93 % conforming to IEC 68-2-3 |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13...150 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-6 |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 61800-3 |
| Tolerance | 10 % |
| Thermal losses | 14 W for 380...480 V AC ATV61/ATV71 variable speed drives 24 W for 200...240 V AC ATV61/ATV71 variable speed drives |
| Tightening torque | 1.5 N.m |
| Product specific application | Radio interference input filter |
| Ambient air temperature for storage | -40...65 °C |
| Ambient air temperature for operation | -10...50 °C |
MPN
VW3A4403
