Schneider Electric VW3A4423
MPNVW3A4423
Obsolete

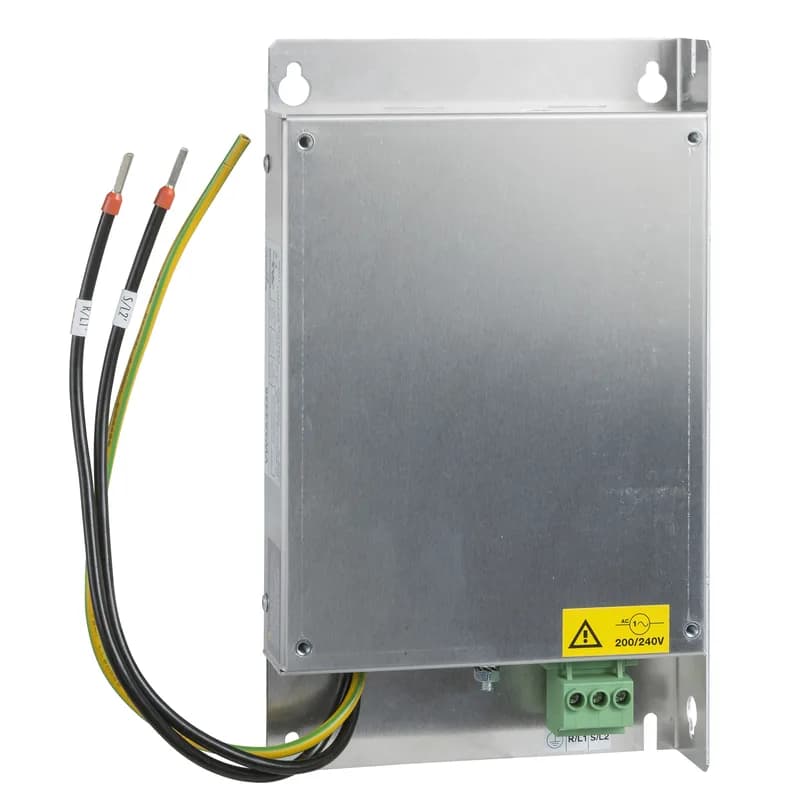

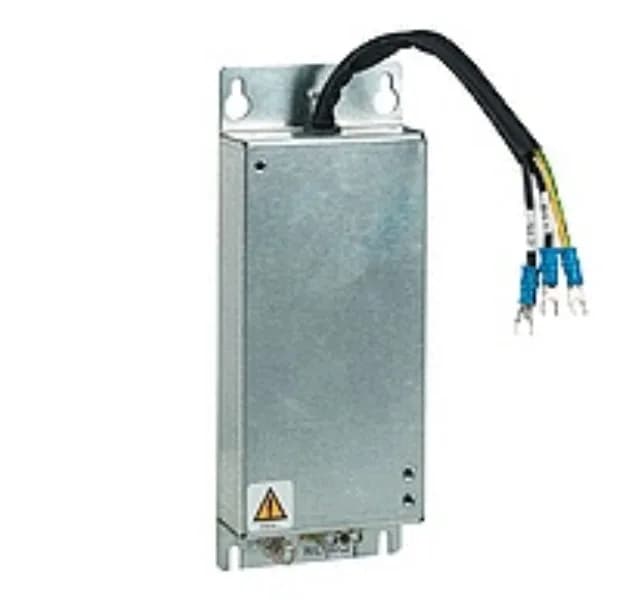

Square D VW3A4423 Emc Input Filter For 480V Atv32 25 A
$74.93 – $199.59Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar Lexium |
| Product or component type | EMC input filter |
| Network rated voltage | 380...500 V |
| Line rated current | 25 A |
| Phases | Three phase |
| Mounting location | At variable speed drive side |
| Maximum cable distance between devices | 65.6 ft (20 m) IEC 61800-3 category C1 164.04 ft (50 m) IEC 61800-3 category C2 328.08 ft (100 m) IEC 61800-3 category C3 |
| EMC filter compatibility | Type 023 |
| Category | US1CP4B22152 |
| Tolerance | - 15...10 % |
| Thermal losses | 15.8 W |
| Product specific application | Radio interference input filter |
MPN
VW3A4423
