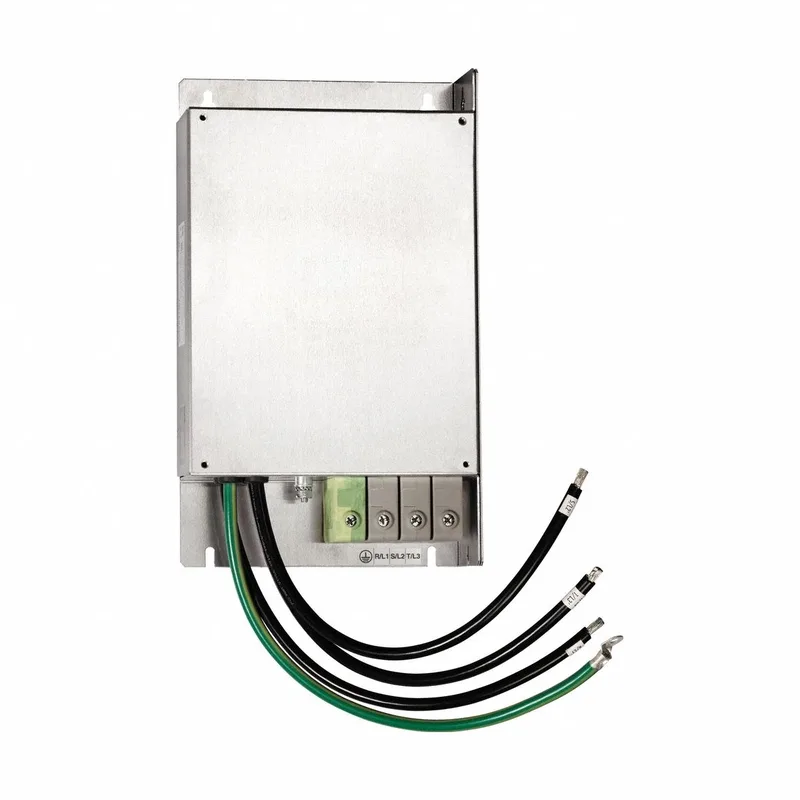

Schneider VW3A4424 EMC Filter
MPNVW3A4424
Obsolete
EMC Filter,12.01 in L,7.09 in W
$369.00 – $643.42Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar Lexium |
| Product or component type | EMC input filter |
| Network rated voltage | 380...500 V |
| Line rated current | 47 A |
| Phases | Three phase |
| Mounting location | Below variable speed drive |
| Maximum cable distance between devices | 65.6 ft (20 m) IEC 61800-3 category C1 328.08 ft (100 m) IEC 61800-3 category C2 492.1 ft (150 m) IEC 61800-3 category C3 |
| EMC filter compatibility | Type 024 |
| Category | US1CP4B22152 |
| Tolerance | - 15...10 % |
| Thermal losses | 19.3 W |
| Product specific application | Radio interference input filter |
MPN
VW3A4424
