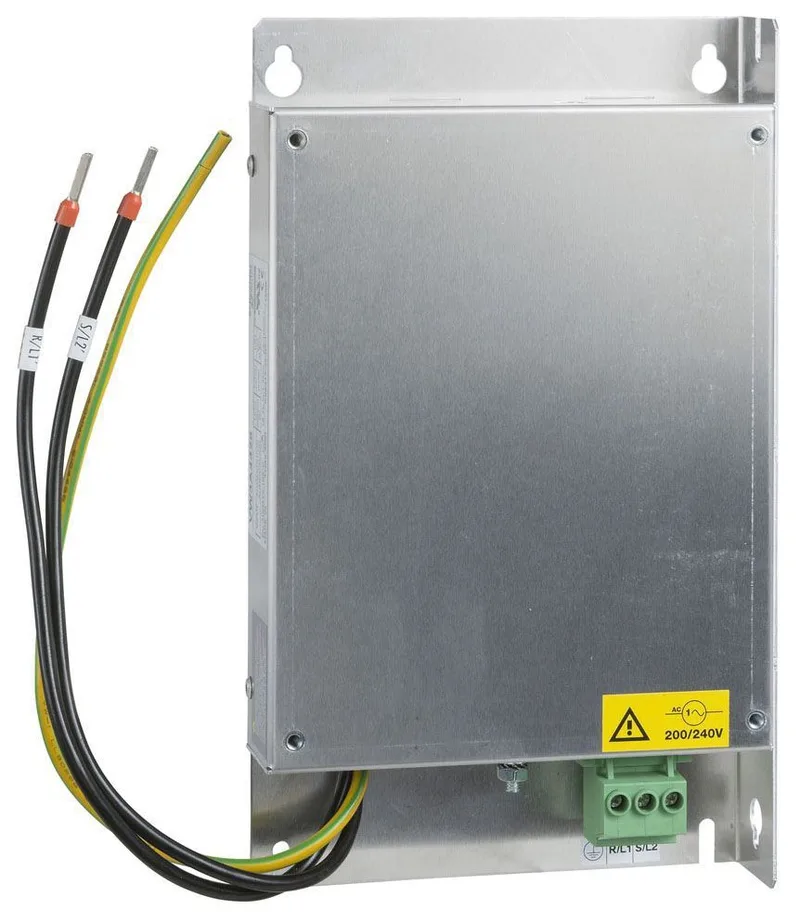

Schneider Electric VW3A4426
MPNVW3A4426
Active
Square D VW3A4426 Emc Input Filter For|Square D VW3A4426 Emc Input Filter For
$81.28 – $222.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Lexium Altivar |
| Product or component type | EMC input filter |
| Network rated voltage | 200...240 V |
| Line rated current | 23.9 A |
| Phases | Single phase |
| Mounting location | At variable speed drive side |
| Maximum cable distance between devices | 65.6 ft (20 m) IEC 61800-3 category C1 164.04 ft (50 m) IEC 61800-3 category C2 |
| EMC filter compatibility | Type 026 |
| Category | US1CP4B22152 |
| Tolerance | - 15...10 % |
| Thermal losses | 7.5 W |
| Product specific application | Radio interference input filter |
MPN
VW3A4426
