Schneider Electric VW3A4552
MPNVW3A4552
Active

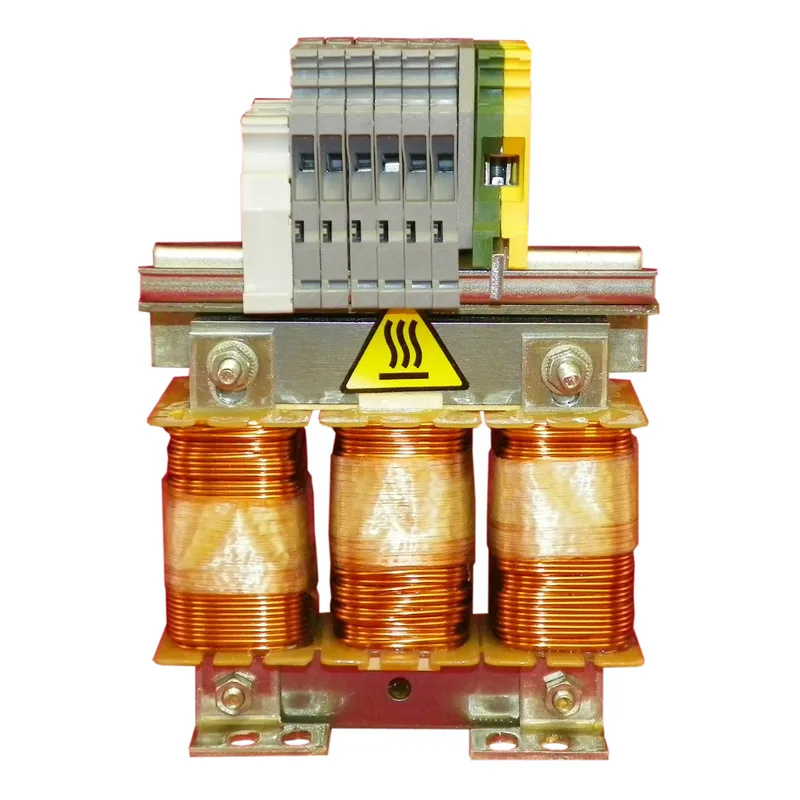

A C CHOKE- 4MH 10 AMP|A C CHOKE- 4MH 10 AMP
$176.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | Line/motor choke |
| Maximum voltage drop at rated load | 5 % |
| Max current | 1.65 x nominal current 60 s) |
| Line rated current | 10 A |
| Power supply frequency | 50...60 Hz |
| Phases | Three phase |
| IP degree of protection | Choke IP00 Terminals IP20 |
| Electrical connection | Terminal 2.5 mm² / AWG 12, 3.5...5.3 lbf.in (0.4...0.6 N.m) |
| Pollution degree | 2 EN 50178 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 0...95 % |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-6 |
| Depth | 3.5 in (90 mm) |
| Width | 5.1 in (130 mm) |
| Height | 6.1 in (155 mm) |
| Standards | EN 50178 IEC 60076 (with HD398) VDE 0160 level 1 |
| Category | US1CP4B22154 |
| Thermal losses | 65 W |
| Leakage distance | 0.5 in (11.5 mm) IEC 60664 |
| Device application | Reduction of current harmonics Reduction of overvoltages at motor terminals |
| Value of inductance | 4 mH |
| Minimum clearance distance | 0.2 in (5.5 mm) IEC 60664 |
| Electrical insulation class | Class F |
| Environmental characteristic | 3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 113...131 °F (45...55 °C) (with current derating of 2 % per °C) 32...113 °F (0...45 °C) (without current derating) |
MPN
VW3A4552
