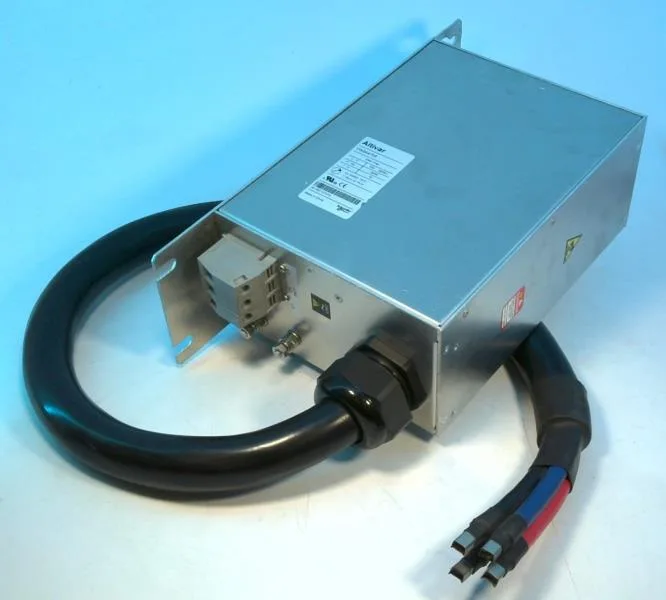

Schneider VW3A4705 Drive Module
MPNVW3A4705
Active
VW3A4705 - FOR VERIABLE SPEED DRIVES by SQUARE D
$324.61Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Power supply voltage | 200...240 V 380...480 V |
| Current | 70 A |
| Maximum earth leakage current | 13.9 mA at 400 V 50 Hz TN 13.9 mA at 400 V 50 Hz TT |
| Network number of phases | Three phase |
| IP degree of protection | IP20mounting side by side IP21with kit VW3A47905 |
| Electrical connection | Terminal 50 mm² AWG 1/0 |
| Maximum motor cable length | 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V |
| Relative humidity | 5...95 % without condensation conforming to IEC 61800-5-1 |
| Operating altitude | 0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| Depth | 175 mm |
All specifications
| Parameter | Value |
|---|---|
| Width | 100 mm |
| Height | 328 mm |
| Standards | IEC 61800-3 |
| Tolerance | 10 % |
| Thermal losses | 10 W |
| Mechanical robustness | Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3 |
| Product specific application | Radio interference input filter |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -10...50 °C (without current derating) 50...60 °C (with current derating 1.5 % per °C) |
MPN
VW3A4705
