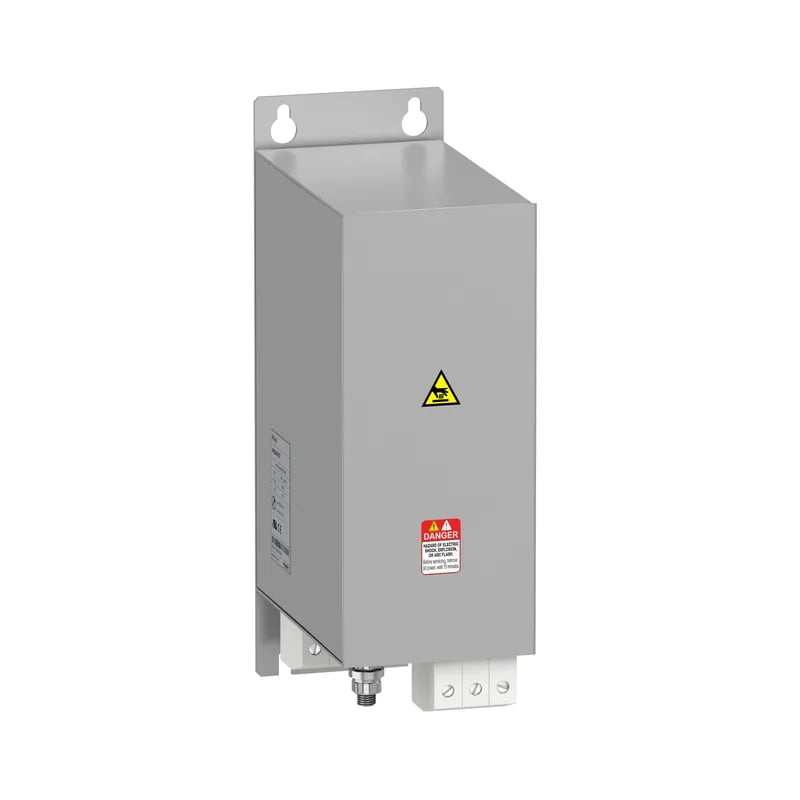

Schneider Electric VW3A4707
MPNVW3A4707
Active
Square D VW3A4707 Drive Emc Filter|Square D VW3A4707 Drive Emc Filter
$184.51Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | EMC input filter |
| Power supply voltage | 200...240 V 380...480 V |
| Line rated current | 160 A |
| Maximum earth leakage current | 13.9 mA 400 V 50 Hz TN 13.9 mA 400 V 50 Hz TT |
| Phases | Three phase |
| IP degree of protection | IP20mounting side by side IP21with kit VW3A47907 |
| Mounting location | At variable speed drive side |
| Electrical connection | Terminal 150 mm² 300 kcmil |
| Maximum motor cable length | 492.1 ft (150 m) shielded motor cable 4 kHz IEC 61800-3 category C2, 380...480 V 984.3 ft (300 m) shielded motor cable 4 kHz IEC 61800-3 category C3, 380...480 V 492.1 ft (150 m) shielded motor cable 4 kHz IEC 61800-3 category C2, 200...240 V 984.3 ft (300 m) shielded motor cable 4 kHz IEC 61800-3 category C3, 200...240 V 164.04 ft (50 m) shielded motor cable 4 kHz IEC 61800-3 category C1, 200...240 V 164.04 ft (50 m) shielded motor cable 4 kHz IEC 61800-3 category C1, 380...480 V |
| Relative humidity | 5...95 % without condensation IEC 61800-5-1 |
| Operating altitude | 0...3280.84 ft (0...1000 m) without current derating 3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m |
All specifications
| Parameter | Value |
|---|---|
| Depth | 9.4 in (240 mm) |
| Width | 5.1 in (130 mm) |
| Height | 15.6 in (395 mm) |
| Standards | IEC 61800-3 |
| Category | US1000I22000 |
| Tolerance | 10 % |
| Thermal losses | 25 W |
| Mechanical robustness | Shocks class 3M4 IEC 60721-3-3 Vibrations class 3M4 IEC 60721-3-3 |
| Product specific application | Radio interference input filter |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) (without current derating) 122...140 °F (50...60 °C) (with current derating 1.5 % per °C) |
MPN
VW3A4707
