Schneider Electric VW3A5103
MPNVW3A5103
Active

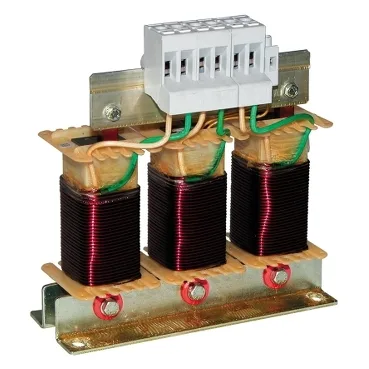

motor choke, Altivar, for variable speed drive, 90A
$357.52 – $649.17Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A |
| Product or component type | Motor choke |
| Current | 90 A |
| Maximum drive output frequency | 100 Hz |
| IP degree of protection | IP20 (with kits VW3A9612,613) IP00 |
| Electrical connection | Bare wires diameter: 9 mm |
| Maximum motor cable length | 300 m shielded cable P motor 2.2...7.5 kW at 200...240 V 1 300 m unshielded cable P motor 2.2...7.5 kW at 200...240 V 1 150 m shielded cable P motor 11...22 kW at 200...240 V 1 300 m unshielded cable P motor 11...22 kW at 200...240 V 1 160 m shielded cable P motor 0.75...18.5 kW at 380...480 V 1 200 m unshielded cable P motor 0.75...18.5 kW at 380...480 V 1 140 m shielded cable P motor 22...30 kW at 380...480 V 1 170 m unshielded cable P motor 22...30 kW at 380...480 V 1 75 m shielded cable P motor 2.2...7.5 kW at 500...600 V 1 150 m unshielded cable P motor 2.2...7.5 kW at 500...600 V 1 65 m shielded cable P motor 2.2...30 kW at 500...690 V 1 100 m unshielded cable P motor 2.2...30 kW at 500...690 V 1 150 m shielded cable P motor 2.2...7.5 kW at 500...690 V 2 250 m unshielded cable P motor 2.2...7.5 kW at 500...690 V 2 100 m shielded cable P motor 2.2...30 kW at 500...690 V 2 150 m unshielded cable P motor 2.2...30 kW at 500...690 V 2 97 m shielded cable P motor 37 kW at 380...480 V 1 166 m unshielded cable P motor 37 kW at 380...480 V 1 |
| Dv (Dt) | 500 V/µs max at 400 V 750 V/µs max at 500 V 1000 V/µs max at 690 V |
| Thermal losses | 350 W |
| Nedded quantity | 1 |
| Product specific application | Output filter |
| Ambient air temperature for storage | -25...70 °C |
| Ambient air temperature for operation | -10...50 °C |
MPN
VW3A5103
