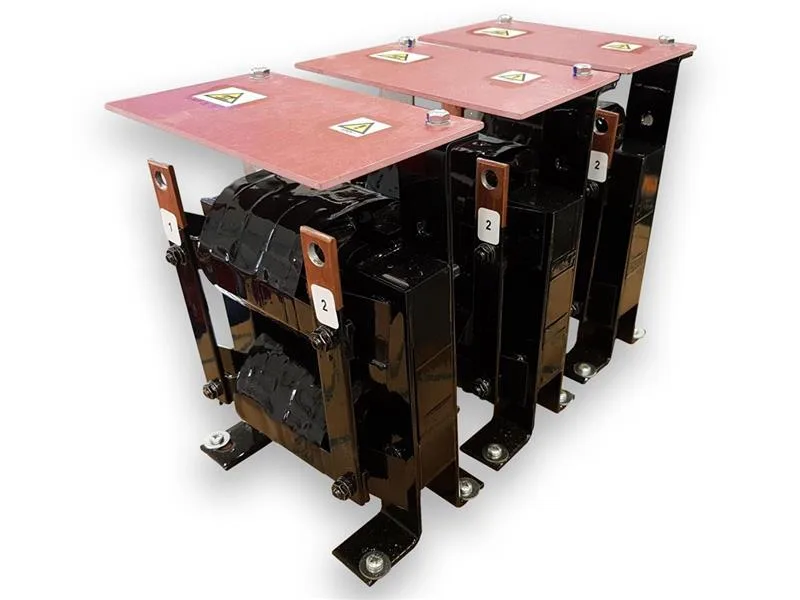

Schneider VW3A5104 AC Drive Module
MPNVW3A5104
Active
VW3A5104 - 215 A by SCHNEIDER ELECTRIC
$483.87Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Motor choke |
| Line rated current | 215 A |
| Maximum drive output frequency | 100 Hz |
| IP degree of protection | IP20 with kits VW3A9612,613) IP00 |
| Electrical connection | Tag connector M10 |
| Maximum motor cable length | 492.1 ft (150 m) shielded cable 30...45 kW 200...240 V 1 984.3 ft (300 m) unshielded cable 30...45 kW 200...240 V 1 656.2 ft (200 m) shielded cable 5.5...18.5 kW 380...480 V 1 984.3 ft (300 m) unshielded cable 5.5...18.5 kW 380...480 V 1 492.1 ft (150 m) shielded cable 22...30 kW 380...480 V 1 984.3 ft (300 m) unshielded cable 22...30 kW 380...480 V 1 492.1 ft (150 m) shielded cable 45...75 kW 380...480 V 1 984.3 ft (300 m) unshielded cable 45...75 kW 380...480 V 1 492.1 ft (150 m) shielded cable 2.2...7.5 kW 500...600 V 1 820.2 ft (250 m) unshielded cable 2.2...7.5 kW 500...600 V 1 820.2 ft (250 m) shielded cable 2.2...7.5 kW 500...600 V 2 1312.3 ft (400 m) unshielded cable 2.2...7.5 kW 500...600 V 2 328.08 ft (100 m) shielded cable 2.2...30 kW 500...690 V 2 492.1 ft (150 m) unshielded cable 2.2...30 kW 500...690 V 2 492.1 ft (150 m) shielded cable 11...30 kW 500...690 V 2 820.2 ft (250 m) unshielded cable 11...30 kW 500...690 V 2 492.1 ft (150 m) shielded cable 30...160 kW 500...690 V 1 820.2 ft (250 m) unshielded cable 30...160 kW 500...690 V 1 820.2 ft (250 m) shielded cable 30...160 kW 500...690 V 2 984.3 ft (300 m) unshielded cable 30...90 kW 500...690 V 2 1312.3 ft (400 m) unshielded cable 90...160 kW 500...690 V 2 656.2 ft (200 m) shielded cable 37 kW 380...480 V 1 984.3 ft (300 m) unshielded cable 37 kW 380...480 V 1 656.2 ft (200 m) shielded cable 90 kW 380...480 V 1 984.3 ft (300 m) unshielded cable 90 kW 380...480 V 1 |
| Dv (Dt) | 500 V/µs 400 V 750 V/µs 500 V 1000 V/µs 690 V |
| Category | US1CP4C22135 |
| Thermal losses | 430 W |
| Nedded quantity | 3 |
| Product specific application | Output filter |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...122 °F (-10...50 °C) |
MPN
VW3A5104
