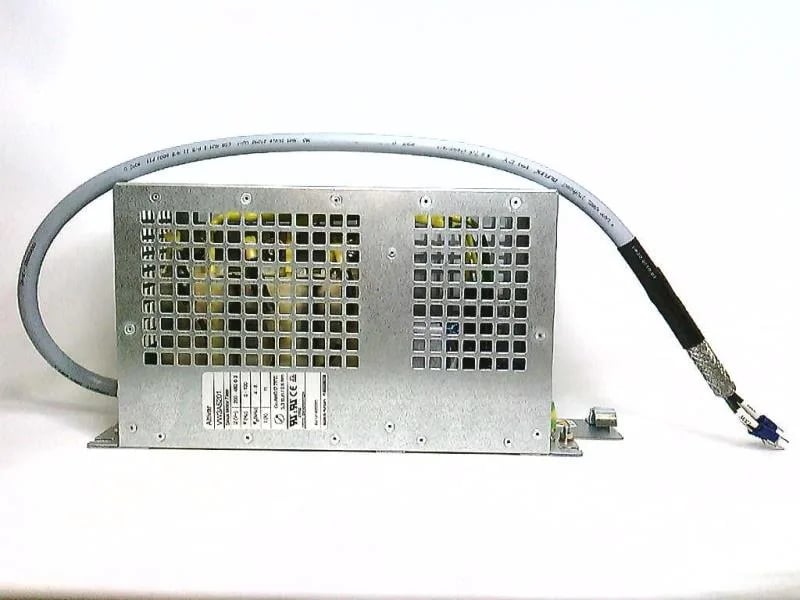

Schneider VW3A5201 Power Filter
MPNVW3A5201
Obsolete
VW3A5201 - 3-PH 380/480V 50/60HZ by SCHNEIDER ELECTRIC
$459.74Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Sinus filter |
| Maximum permissible voltage | 500 V AC |
| Maximum voltage drop at rated load | 10 % |
| Max current | 1.5 x nominal current 60 s) |
| Line rated current | 11 A |
| Switching frequency | 4...8 kHz |
| Maximum output frequency | 100 Hz |
| IP degree of protection | IP20 |
| Electrical connection | Terminal 4 mm² / AWG 10, 5.3 lbf.in (0.6 N.m) |
| Maximum motor cable length | 984.3 ft (300 m) 0.75 kW 400 V 984.3 ft (300 m) 1.5 kW 400 V 984.3 ft (300 m) 2.2 kW 400 V 1968.5 ft (600 m) 2.2 kW 400 V 1968.5 ft (600 m) 3 kW 400 V 1968.5 ft (600 m) 4 kW 400 V |
| Pollution degree | 2 EN 50178 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 0...95 % |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13...200 Hz) conforming to IEC 60068-2 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2 |
| Category | 18065-SPARE PARTS DISCOUNT CP4C |
| Thermal losses | 50 W 100 Hz |
| Environmental characteristic | 3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
| Product specific application | Output filter |
| Ambient air temperature for storage | -40...149 °F (-40...65 °C) |
| Ambient air temperature for operation | 104...122 °F (40...50 °C) (with current derating 1.5 % per °C) 14...104 °F (-10...40 °C) (without current derating) |
MPN
VW3A5201
