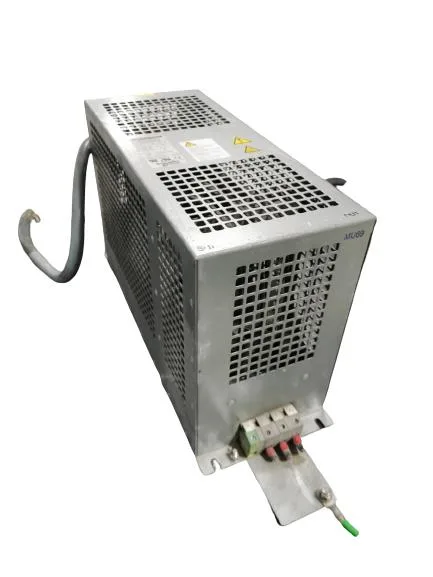

Schneider VW3A5203 Motor Filter
MPNVW3A5203
Obsolete
VW3A5203 - SINUS MOTOR FILTER by SCHNEIDER ELECTRIC
$847.65Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Sinus filter |
| Maximum permissible voltage | 500 V AC |
| Maximum voltage drop at rated load | 10 % |
| Max current | 1.5 x nominal current (duration = 60 s) |
| Current | 33 A |
| Switching frequency | 4...8 kHz |
| Maximum output frequency | 100 Hz |
| IP degree of protection | IP20 |
| Electrical connection | Terminal 10 mm² / AWG 6, 1.5 N.m |
| Maximum motor cable length | 1000 m P motor 7.5 kW at 400 V 1000 m P motor 11 kW at 400 V 1000 m P motor 15 kW at 400 V |
| Pollution degree | 2 conforming to EN 50178 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 0...95 % |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m |
| Vibration resistance | 1 gn (f= 13...200 Hz) conforming to IEC 60068-2 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2 |
| Thermal losses | 120 W at 100 Hz |
| Environmental characteristic | 3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
| Product specific application | Output filter |
| Ambient air temperature for storage | -40...65 °C |
| Ambient air temperature for operation | 40...50 °C (with current derating 1.5 % per °C) -10...40 °C (without current derating) |
MPN
VW3A5203
