Schneider Electric VW3A5303
MPNVW3A5303
Active

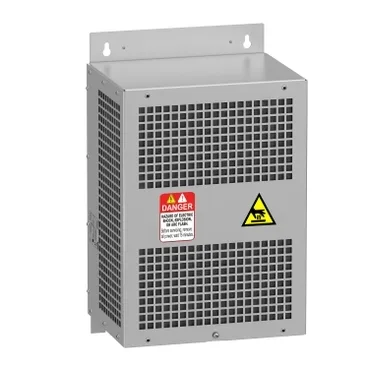

output dv dt filter, Altivar, for variable speed drive, 4 to 15kW, 25A, IP20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Dv/dt filter |
| Current | 25 A |
| Maximum drive output frequency | 100 Hz |
| IP degree of protection | IP20 IP21 (with kit VW3A53902) |
| Electrical connection | Terminal block, connection capacity: 10 mm² / AWG 8 |
| Maximum motor cable length | 500 m unshielded cable 300 m shielded cable |
| Operating altitude | 0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| Depth | 215 mm |
| Width | 295 mm |
| Height | 535 mm |
| Dv (Dt) | 3000 V/µs max at 200...240 V 3000 V/µs max at 380...480 V |
| Thermal losses | 49 W at 4 kHz |
| Nedded quantity | 1 |
| Product specific application | Output filter |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -10...50 °C (without current derating) 50...60 °C (with current derating 1.5 % per °C) |
MPN
VW3A5303
