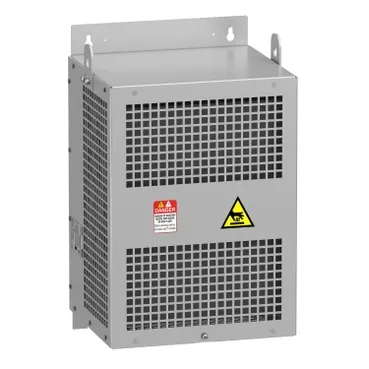

Schneider Electric VW3A5404
MPNVW3A5404
Active
output sinus filter - 50 A - for variable speed drive
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Sinus filter |
| Permissible voltage | 480 V AC |
| Maximum voltage drop at rated load | 8 % |
| Max current | 1.20 x nominal current (duration = 60 s) |
| Current | 50 A |
| Switching frequency | 4...8 kHz |
| Maximum output frequency | 100 Hz |
| IP degree of protection | IP20 IP21 (with kit VW3A53903) |
| Electrical connection | terminal block, connection capacity: 16 mm² / AWG 6 |
| Maximum motor cable length | 1000 m unshielded cable 500 m shielded cable |
| Pollution degree | 3 conforming to IEC 61800-5-1 |
| Relative humidity | 5...95 % without condensation |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m |
| Depth | 245 mm |
| Width | 300 mm |
| Height | 560 mm |
| Thermal losses | 196 W at 4 kHz |
| Mechanical robustness | Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3 |
| Environmental characteristic | Biological pollution resistance class 3B1 conforming to IEC 60721-3-3 Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 Dust pollution resistance class 3S3 conforming to IEC 60721-3-3 |
| Product specific application | Output filter |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | 50...60 °C (with current derating 1.5 % per °C) -15...50 °C (without current derating) |
MPN
VW3A5404
