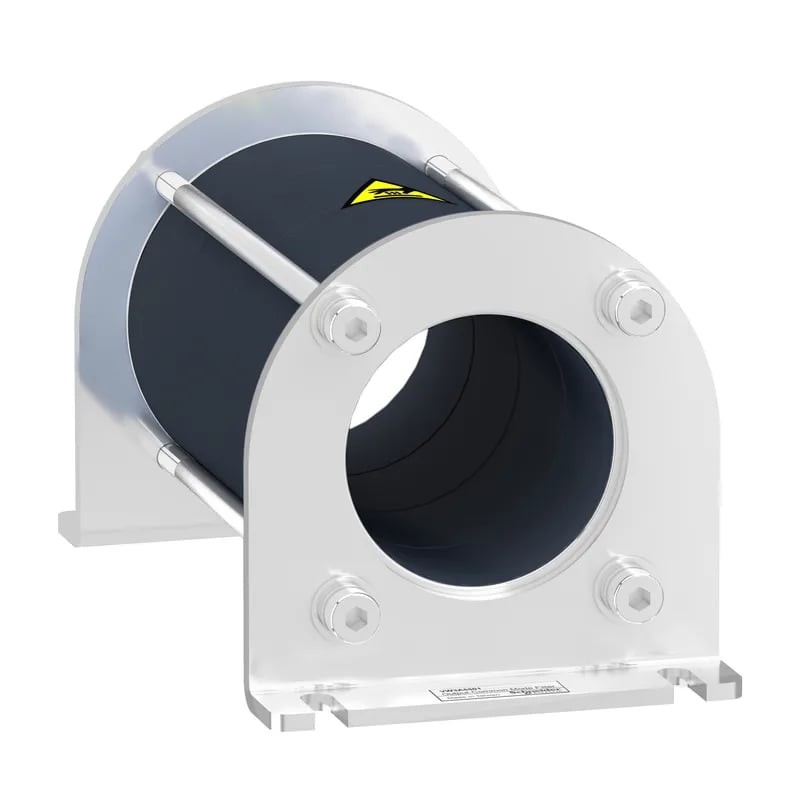

Schneider VW3A5501 Common Mode Filter

MPNVW3A5501

Active

Square D VW3A5501 Common Mode Filter|Square D VW3A5501 Common Mode Filter

$483.00Ref. price · indicative, final on quote

Request quote

Schneider Electric VW3A5501 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

VW3A5501 specifications
Parameter	Value
Product or component type	Common mode output filter
Saturation current	1.1 A
Switching frequency	<= 10 kHz
Maximum output frequency	100 Hz
Maximum motor cable length	492.1 ft (150 m)(unshielded cable)0.75...11 kW 380...480 V 1 492.1 ft (150 m)(shielded cable)0.75...4 kW 380...480 V 1 984.3 ft (300 m)(shielded cable)5.5...11 kW 380...480 V 2 1640.4 ft (500 m)(unshielded cable)0.75...4 kW 380...480 V 2 1640.4 ft (500 m)(unshielded cable)5.5...11 kW 380...480 V 1 VW3A5502 1640.4 ft (500 m)(shielded cable)0.75...4 kW 380...480 V 2 3280.8 ft (1000 m)(unshielded cable)0.75...5.5 kW 380...480 V 1 VW3A5502 492.1 ft (150 m)(unshielded cable)0.75...5.5 kW 200...240 V 1 492.1 ft (150 m)(shielded cable)0.75...4 kW 200...240 V 1 984.3 ft (300 m)(shielded cable)5.5 kW 200...240 V 2 1640.4 ft (500 m)(unshielded cable)0.75...4 kW 200...240 V 2 1640.4 ft (500 m)(unshielded cable)5.5 kW 200...240 V 1 VW3A5502 1640.4 ft (500 m)(shielded cable)0.75...4 kW 200...240 V 2 3280.8 ft (1000 m)(unshielded cable)0.75...4 kW 200...240 V 1 VW3A5502
Relative humidity	5...95 % without condensation
Depth	2.6 in (66 mm)
Width	2.6 in (66 mm)
Height	4.7 in (119.2 mm)
Category	US1CP4E22276
Internal diameter	1.5 in (37.1 mm) 3-phase cable inside 1.5 in (37.1 mm) PE cable outside
Value of inductance	146.4 µH
Mechanical robustness	Shocks class 3M4 IEC 60721-3-3 Vibrations class 3M4 IEC 60721-3-3
Electrical insulation class	Class I
Ambient air temperature for storage	-40...158 °F (-40...70 °C)
Ambient air temperature for operation	5...140 °F (-15...60 °C)
