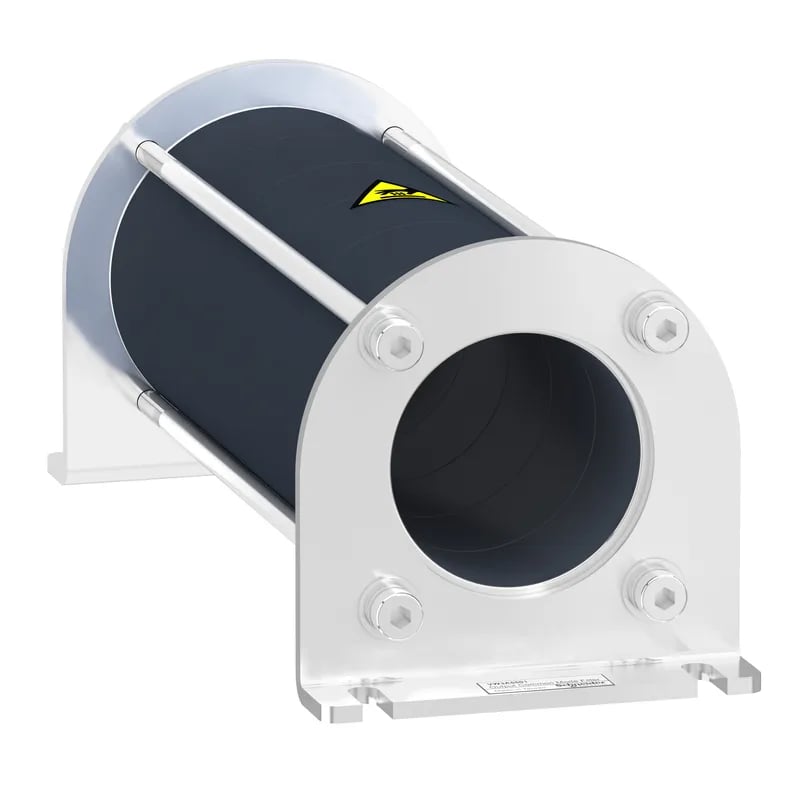

Schneider Electric VW3A5502
MPNVW3A5502
Active
Square D VW3A5502 Common Mode Filter|Square D VW3A5502 Common Mode Filter
$610.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Common mode output filter |
| Saturation current | 1.1 A |
| Switching frequency | <= 10 kHz |
| Maximum output frequency | 100 Hz |
| Maximum motor cable length | 492.1 ft (150 m)(shielded cable)5.5...11 kW 380...480 V 1 984.3 ft (300 m)(unshielded cable)0.75...11 kW 380...480 V 1 984.3 ft (300 m)(shielded cable)0.75...4 kW 380...480 V 1 1640.4 ft (500 m)(unshielded cable)5.5...11 kW 380...480 V 1 VW3A5501 1640.4 ft (500 m)(shielded cable)5.5...11 kW 380...480 V 2 3280.8 ft (1000 m)(unshielded cable)0.75...5.5 kW 380...480 V 1 VW3A5501 3280.8 ft (1000 m)(unshielded cable)7.5...11 kW 380...480 V 2 492.1 ft (150 m)(shielded cable)5.5 kW 200...240 V 1 984.3 ft (300 m)(unshielded cable)0.75...5.5 kW 200...240 V 1 984.3 ft (300 m)(shielded cable)0.75...4 kW 200...240 V 1 1640.4 ft (500 m)(unshielded cable)5.5 kW 200...240 V 1 VW3A5501 1640.4 ft (500 m)(shielded cable)5.5 kW 200...240 V 2 3280.8 ft (1000 m)(unshielded cable)0.75...4 kW 200...240 V 1 VW3A5501 3280.8 ft (1000 m)(unshielded cable)5.5 kW 200...240 V 2 |
| Relative humidity | 5...95 % without condensation |
| Depth | 2.6 in (66 mm) |
| Width | 2.6 in (66 mm) |
| Height | 6.4 in (163.8 mm) |
| Category | US1CP4E22276 |
| Internal diameter | 1.5 in (37.1 mm) 3-phase cable inside 1.5 in (37.1 mm) PE cable outside |
| Value of inductance | 219.6 µH |
| Mechanical robustness | Shocks class 3M4 IEC 60721-3-3 Vibrations class 3M4 IEC 60721-3-3 |
| Electrical insulation class | Class I |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...140 °F (-15...60 °C) |
MPN
VW3A5502
