Schneider Electric VW3A5503
MPNVW3A5503
Active

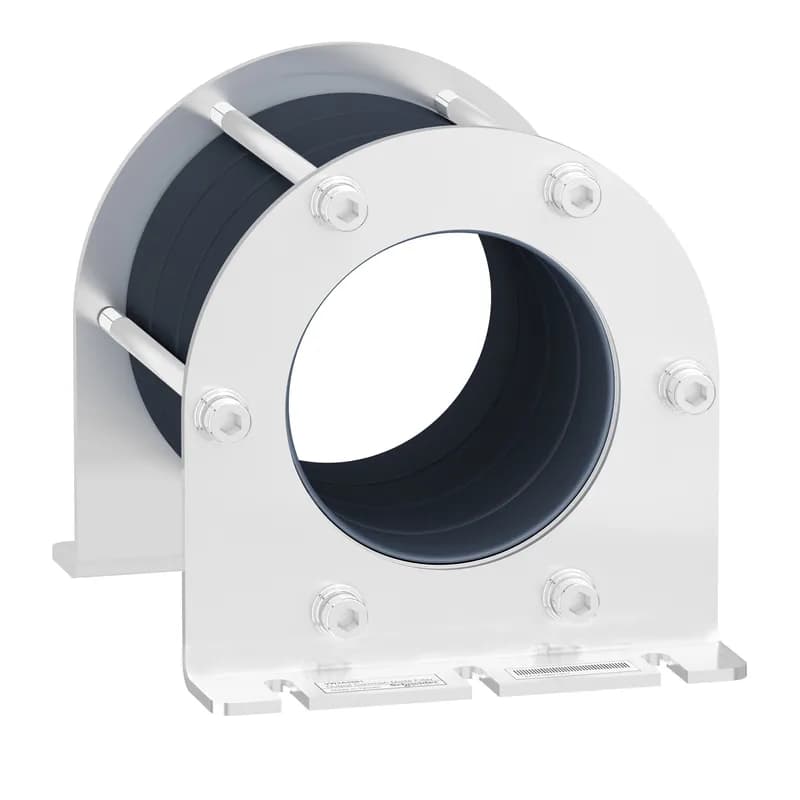

Square D VW3A5503 Common Mode Filter|Square D VW3A5503 Common Mode Filter
$1,290.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Common mode output filter |
| Saturation current | 2.2 A |
| Switching frequency | <= 10 kHz |
| Maximum output frequency | 100 Hz |
| Maximum motor cable length | 492.1 ft (150 m)(unshielded cable)15...90 kW 380...480 V 1 492.1 ft (150 m)(shielded cable)15...22 kW 380...480 V 1 984.3 ft (300 m)(shielded cable)15...22 kW 380...480 V 2 984.3 ft (300 m)(shielded cable)30...90 kW 380...480 V 1 VW3A5504 1640.4 ft (500 m)(unshielded cable)15...22 kW 380...480 V 2 1640.4 ft (500 m)(unshielded cable)30...90 kW 380...480 V 1 VW3A5504 1640.4 ft (500 m)(shielded cable)15...22 kW 380...480 V 1 VW3A5504 3280.8 ft (1000 m)(unshielded cable)15...22 kW 380...480 V 1 VW3A5504 492.1 ft (150 m)(unshielded cable)7.5...45 kW 200...240 V 1 492.1 ft (150 m)(shielded cable)7.5...11 kW 200...240 V 1 984.3 ft (300 m)(shielded cable)7.5...11 kW 200...240 V 2 984.3 ft (300 m)(shielded cable)15...45 kW 200...240 V 1 VW3A5504 1640.4 ft (500 m)(unshielded cable)7.5...11 kW 200...240 V 2 1640.4 ft (500 m)(unshielded cable)15...45 kW 200...240 V 1 VW3A5504 1640.4 ft (500 m)(shielded cable)7.5...11 kW 200...240 V 1 VW3A5504 3280.8 ft (1000 m)(unshielded cable)7.5...11 kW 200...240 V 1 VW3A5504 |
| Relative humidity | 5...95 % without condensation |
| Depth | 5.02 in (127.5 mm) |
| Width | 5.02 in (127.5 mm) |
| Height | 6.3 in (161 mm) |
| Category | US1CP4E22276 |
| Internal diameter | 3.0 in (76 mm) 3-phase cable inside 3.0 in (76 mm) PE cable outside |
| Value of inductance | 120 µH |
| Mechanical robustness | Shocks class 3M4 IEC 60721-3-3 Vibrations class 3M4 IEC 60721-3-3 |
| Electrical insulation class | Class I |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...140 °F (-15...60 °C) |
MPN
VW3A5503
