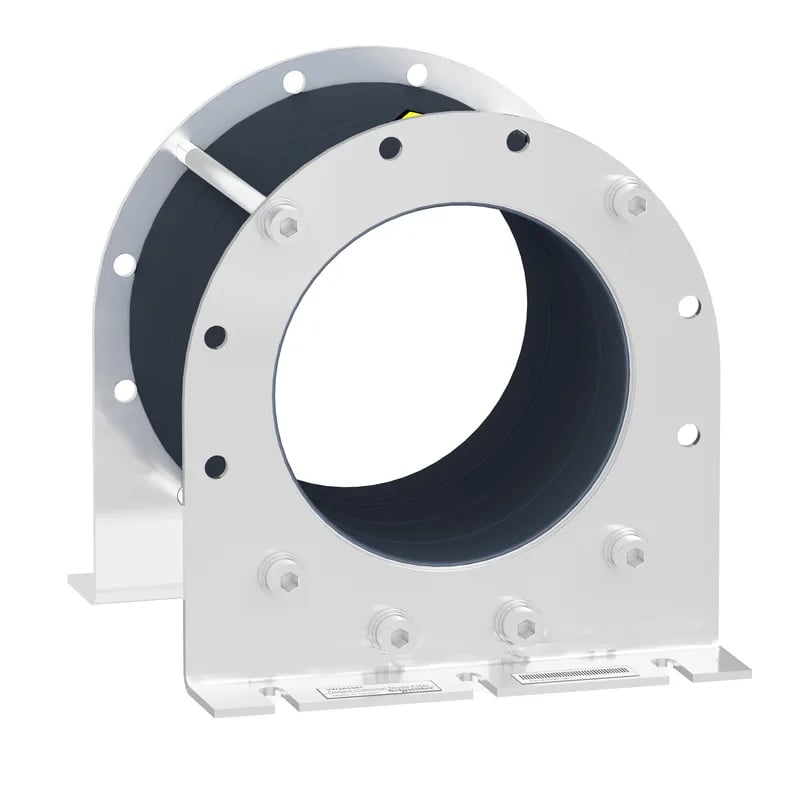

Schneider VW3A5505 Common Mode Filter
MPNVW3A5505
Active
Square D VW3A5505 Common Mode Filter|Square D VW3A5505 Common Mode Filter
$2,320.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Common mode output filter |
| Saturation current | 3.6 A |
| Switching frequency | <= 10 kHz |
| Maximum output frequency | 100 Hz |
| Maximum motor cable length | 492.1 ft (150 m)(unshielded cable)110...160 kW 380...480 V 1 492.1 ft (150 m)(shielded cable)110 kW 380...480 V 1 984.3 ft (300 m)(shielded cable)130...160 kW 380...480 V 2 1640.4 ft (500 m)(unshielded cable)110...160 kW 380...480 V 2 1640.4 ft (500 m)(shielded cable)110 kW 380...480 V 1 VW3A5506 492.1 ft (150 m)(unshielded cable)55...75 kW 200...240 V 1 492.1 ft (150 m)(shielded cable)55 kW 200...240 V 1 984.3 ft (300 m)(shielded cable)75 kW 200...240 V 2 1640.4 ft (500 m)(unshielded cable)55...75 kW 200...240 V 2 1640.4 ft (500 m)(shielded cable)55 kW 200...240 V 1 VW3A5506 |
| Relative humidity | 5...95 % without condensation |
| Depth | 7.7 in (196 mm) |
| Width | 7.5 in (191 mm) |
| Height | 7.8 in (197 mm) |
| Category | US1CP4E22276 |
| Internal diameter | 4.9 in (123.9 mm) 3-phase cable inside 4.9 in (123.9 mm) PE cable outside |
| Value of inductance | 183.2 µH |
| Mechanical robustness | Shocks class 3M4 IEC 60721-3-3 Vibrations class 3M4 IEC 60721-3-3 |
| Electrical insulation class | Class I |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 5...140 °F (-15...60 °C) |
MPN
VW3A5505
