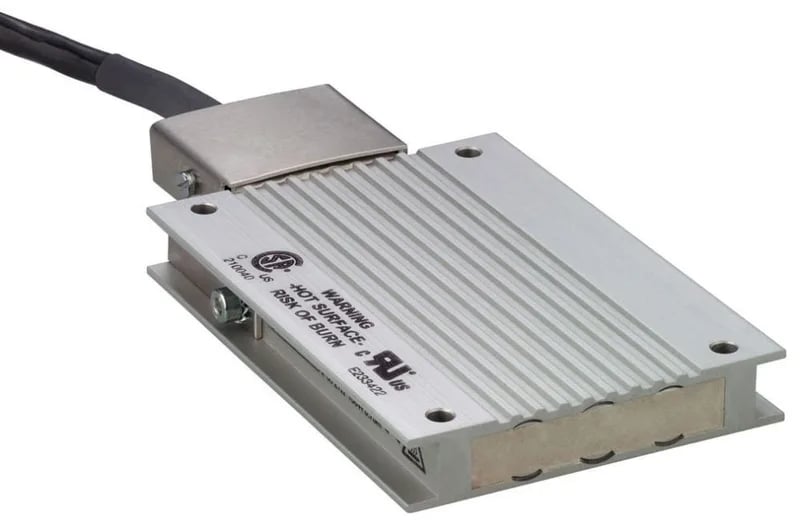

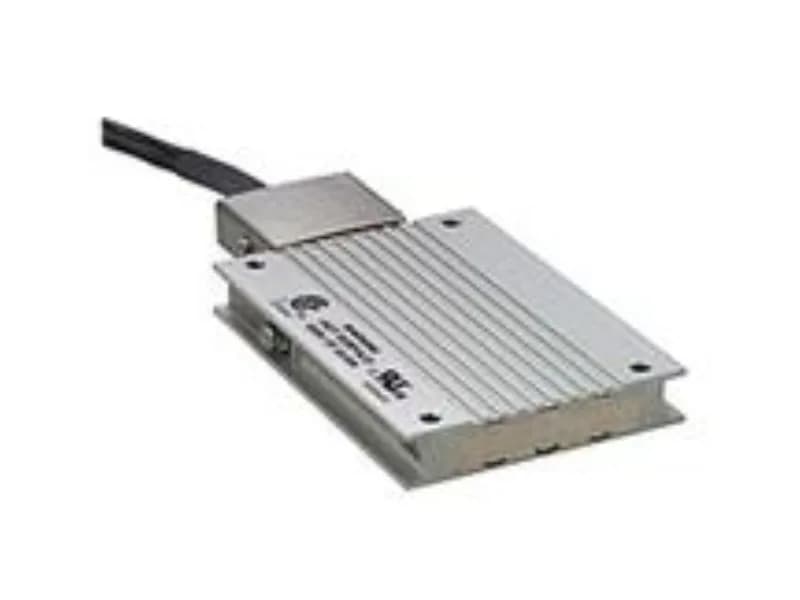

Schneider Electric VW3A7603R07
MPNVW3A7603R07
Active
Square D VW3A7603R07 Braking Resistor|Square D VW3A7603R07 Braking Resistor
$114.30 – $272.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via the servo drive |
| Range of product | Altivar Lexium |
| Product or component type | Braking resistor |
| Continuous power | 200 W |
| Average power available | 50 W 122 °F (50 °C) |
| IP degree of protection | IP65 |
| Cable length | 2.46 ft (0.75 m) |
| Category | US1PC5118263 |
| Energy peak | 4300 J 480 V 4900 J 400 V 7400 J 230 V 9700 J 115 V |
| Ohmic value | 27 Ohm |
| Ambient air temperature for storage | -13...185 °F (-25...85 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7603R07
