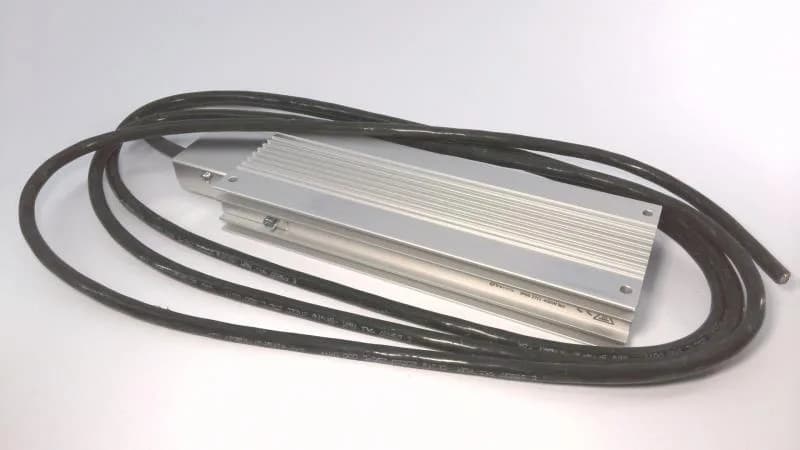

Schneider VW3A7604R30 Braking Resistor
MPNVW3A7604R30
Active
SQUARE D VW3A7604R30: BALLAST RES 27 OHM 400W 3 M CABLE
$175.26 – $447.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via the servo drive |
| Range of product | Lexium Altivar |
| Product or component type | Braking resistor |
| Continuous power | 400 W |
| Average power available | 100 W 122 °F (50 °C) |
| IP degree of protection | IP65 |
| Cable length | 9.8 ft (3 m) |
| Category | US1PC5118263 |
| Energy peak | 10500 J 480 V 11400 J 400 V 18100 J 230 V 25500 J 115 V |
| Ohmic value | 27 Ohm |
| Ambient air temperature for storage | -13...185 °F (-25...85 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7604R30
