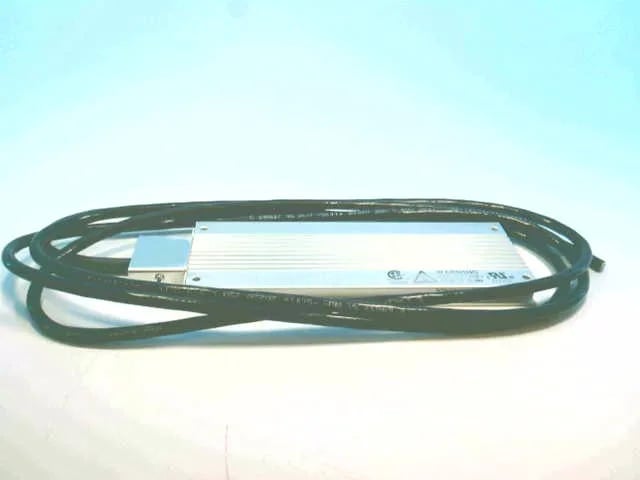

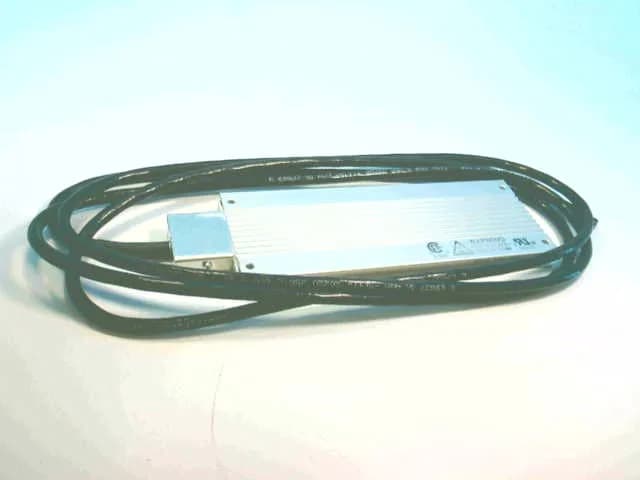

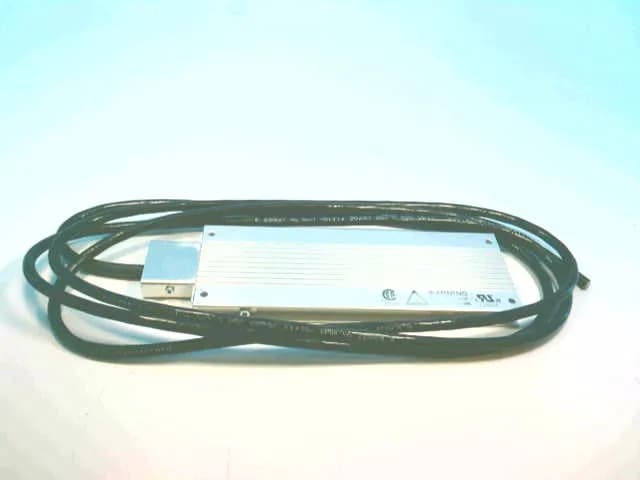

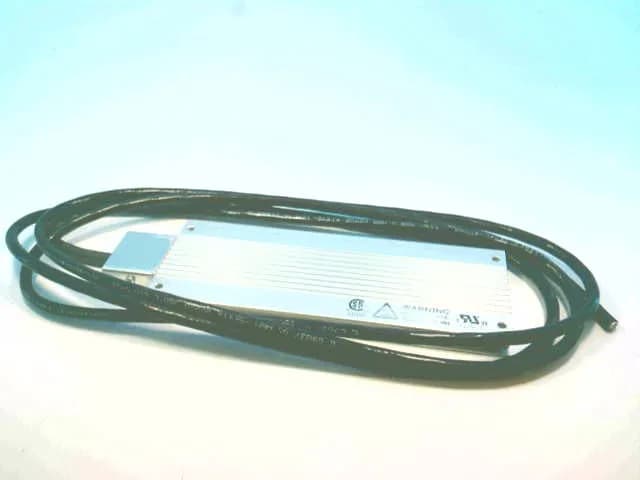

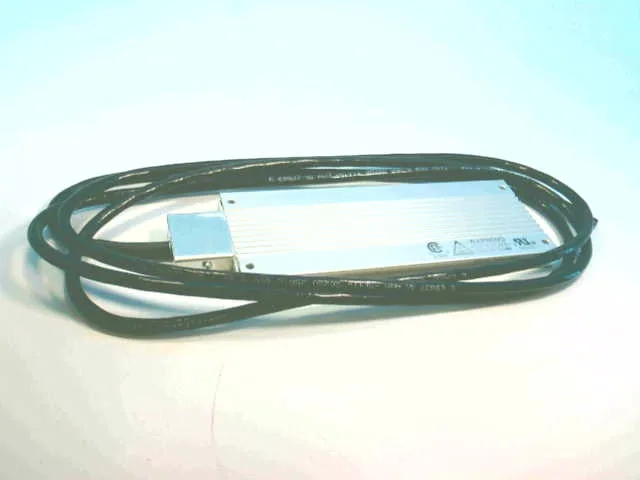

Schneider VW3A7606R30 Braking Resistor
MPNVW3A7606R30
Active
VW3A7606R30 - 72 OHM by SQUARE D
$137.16Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via the servo drive |
| Range of product | Lexium Altivar |
| Product or component type | Braking resistor |
| Continuous power | 200 W |
| Average power available | 50 W 122 °F (50 °C) |
| IP degree of protection | IP65 |
| Cable length | 9.8 ft (3 m) |
| Category | US1PC5118263 |
| Energy peak | 6000 J 480 V 6600 J 400 V 9600 J 230 V 14600 J 115 V |
| Ohmic value | 72 Ohm |
| Ambient air temperature for storage | -13...185 °F (-25...85 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7606R30
